Machine Screw Anchors

Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

Corner Hardware - Maximum strength hardware designed to bear the loads of the bird netting installation. Used at all corners, cable breaks and at both ends of support cables.

Machine Screw Masonry Anchors
  • These machine screw masonry anchors are made from Antimonial Lead Alloy and Zamac Alloy. They are designed to fasten the large HD eyebolts and small cable guide eyebolts to masonry surfaces such as concrete, block, and brick.
  • MS Anchor LG is the ¼-20 NC machine screw anchor for our HD large eyebolt corner hardware and has a pull out strength of 800 pounds (properly installed in solid concrete).

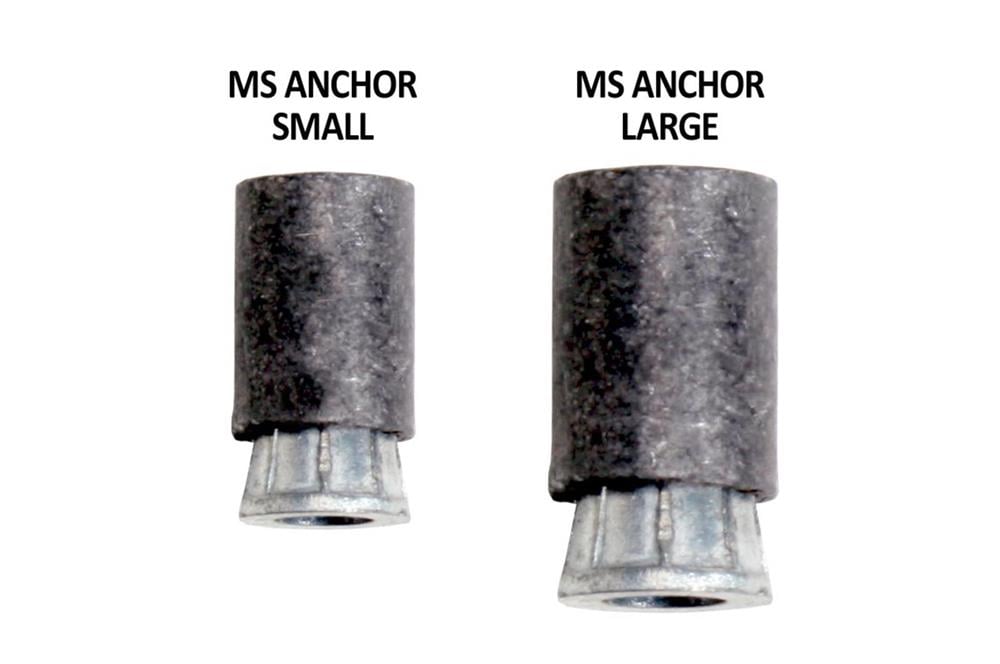

  • MS Anchor LG is ½” in diameter and is 7/8” long.
  • MS Anchor SM is the 10-24 NC machine screw anchor for our small eyebolt cable guides and has a pull out strength of 500 pounds (properly installed in solid concrete).
  • MS Anchor SM is 3/8” in diameter and is 5/8” long.
  • All Machine Screw Anchors are sold in boxes of 100 anchors.

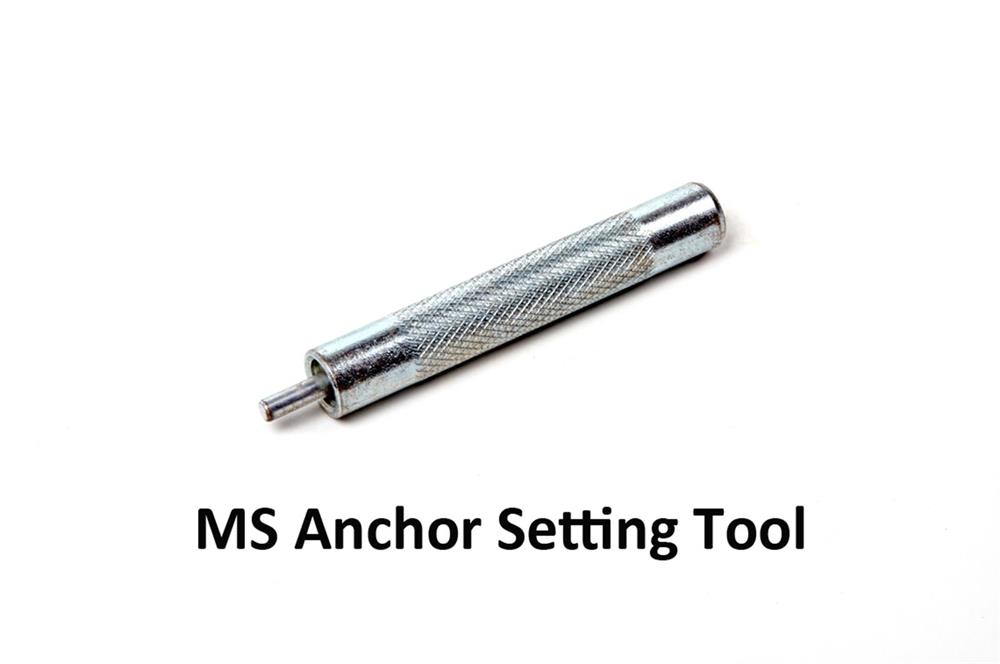

  • Setting tools are sold separately. You only need one setting tool as it can install hundreds of these anchors.
Anchors sold in boxes of 100

Tensioned Cable Hardware Installation    Estimate for Net Hardware

(See the Downloads tab for additional information)

Machine Screw Anchors


Item #:
Price:
Sale Price:
MS Anchor LG installation specs
  • The anchor requires a 1/2" diameter hole, drilled a minimum of 7/8” deep.
  • Drill the hole with a hammer drill and a ½” carbide tipped masonry bit. Minimum embed depth is 7/8” (the same as the anchor length).
  • Clean the hole with a wire brush, compressed air or a blow-out bulb. Make sure dust and debris from drilling does not prevent proper seating of anchor.
  • Insert the anchor into the drilled hole with the threaded cone at the bottom. Tap with a hammer so the anchor is flush or just recessed from the masonry surface.
  • Insert the large setting tool (small end first) into the anchor and strike it with a hammer until the top lip of the anchor touches the larger diameter of the setting tool.

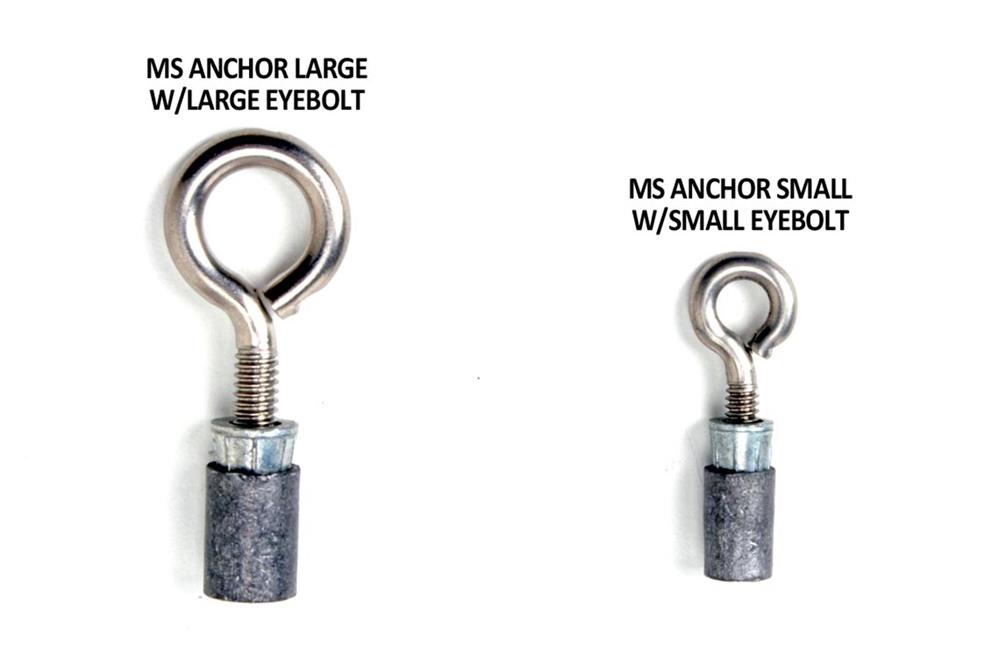

  • Thread the ¼-20 eyebolt into the machine screw anchor.

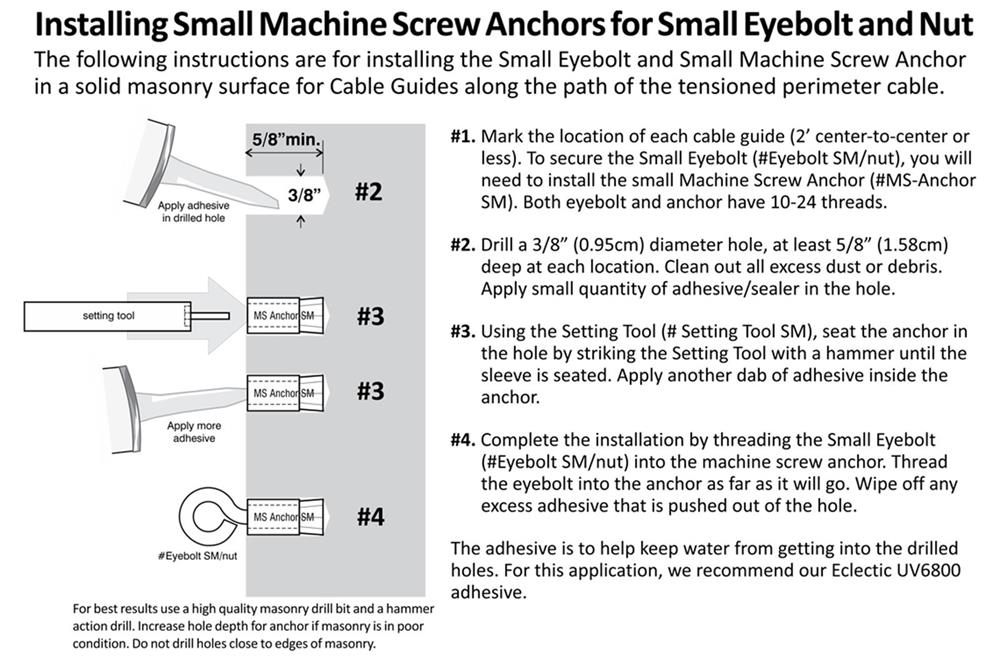

MS Anchor SM installation specs
  • The anchor requires a 3/8" diameter hole, drilled a minimum of 5/8” deep.
  • Drill the hole with a hammer drill and a 3/8” carbide tipped masonry bit. Minimum embed depth is 5/8” (the same as the anchor length).
  • Clean the hole with a wire brush, compressed air or a blow-out bulb. Make sure dust and debris from drilling does not prevent proper seating of anchor.
  • Insert the anchor into the drilled hole with the threaded cone at the bottom. Tap with a hammer so the anchor is flush or just recessed from the masonry surface.
  • Insert the small setting tool (small end first) into the anchor and strike it with a hammer until the top lip of the anchor touches the larger diameter of the setting tool.
  • Thread the 10-24 small eyebolt into the machine screw anchor.
When and Where to Use Machine Screw Masonry Anchors:
  • These machine screw masonry anchors are made from Antimonial Lead Alloy and Zamac Alloy. They are designed to be installed in concrete, block, and brick. Ideal for exterior use.
  • Use the machine screw masonry anchors to facilitate the installation of either the HD stainless steel large eyebolt or the stainless steel small eyebolt cable guide in masonry surfaces.
  • Both anchors are components of the cable hardware used to fasten Nixalite’s bird netting and overhead wire grid deterrents to structural masonry surfaces.
Machine Screw Anchor Installation Tips:
  • Make sure to blow the dust out of the drilled holes before installing the anchors.
  • We suggest using a small quantity of adhesive/sealer in the hole prior to installation (after blowing out the debris) to help prevent water from getting into the drilled holes.
  • Do not install these anchors too close to unsupported edges. For the MS Anchor LG, stay at least 2-1/2” away from unsupported edges. For the MS Anchor SM, stay at least 2” away from unsupported edges.
  • You only need one setting tool. This tool is designed to install several hundred of these anchors. You do not need one tool for every 100 count box of anchors.
  • Always follow the Cable and Cable Hardware maintenance schedules available from Nixalite of America Inc.
