Stainless Outside Corner Bracket

Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

Cable Guides - Hardware designed to keep the cable close to the installation surface and prevent gaps between the surface and the bird netting.

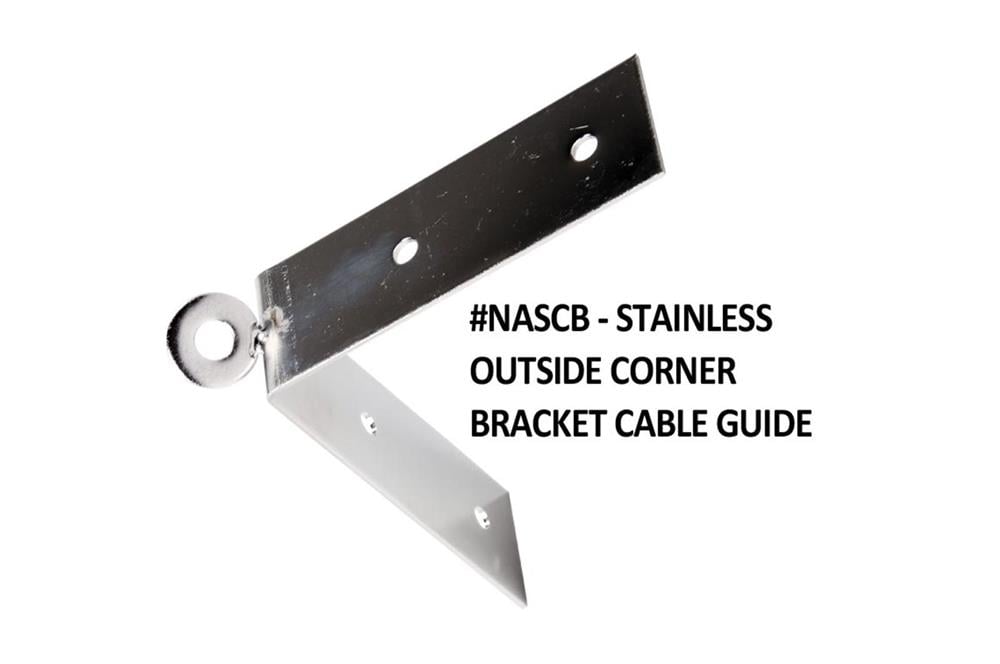

Stainless Outside Corner Cable Bracket

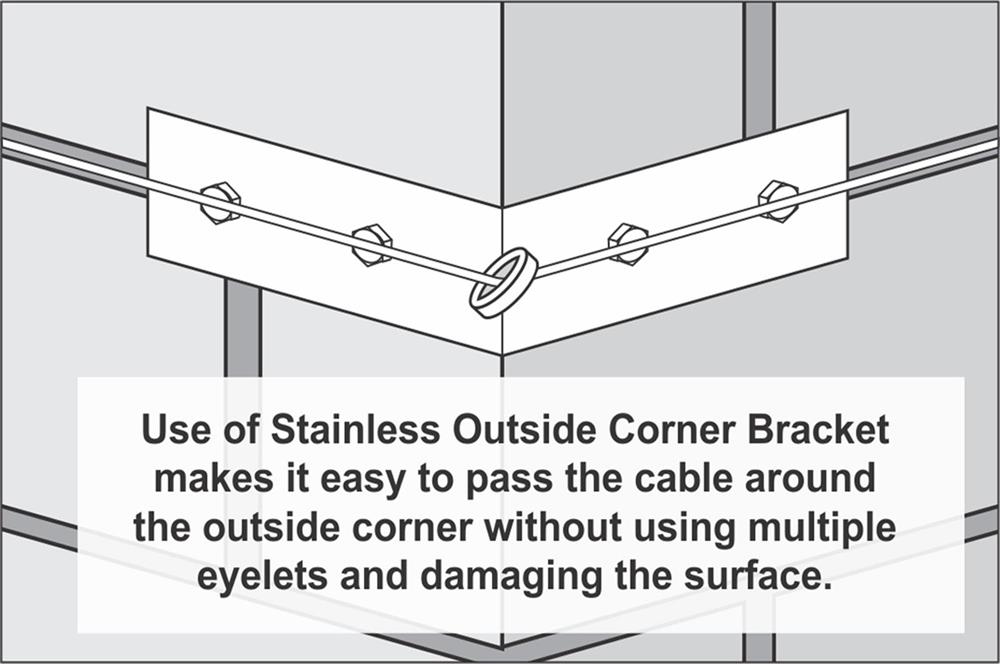

  • Stainless outside corner brackets are used to simplify the process of running the Net Cable around or along an outside corner.  Without the bracket, running Net Cable around or along the corner used multiple sets of hardware on each side of corner – often running the risk of damaging the surface.

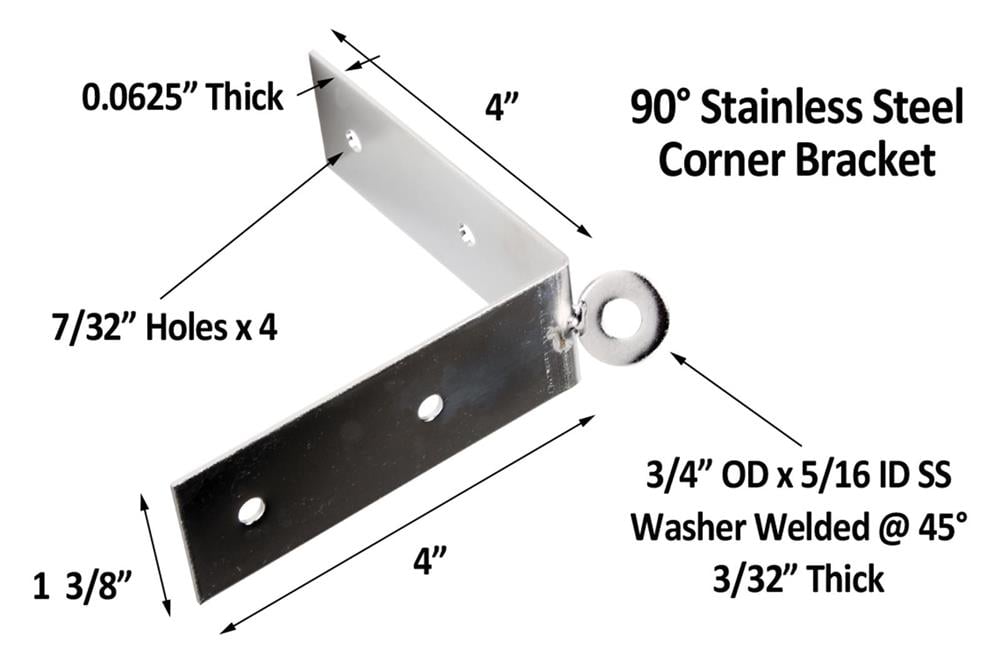

  • Made of 1-3/8” wide and 1/16” thick stainless steel stock, the outside corner bracket has 2 legs 4” long that mount on either side of a 90o corner. Each leg has 2 - 7/32” diameter mounting holes.
  • On each bracket there is a single HD stainless steel ring welded to the outside corner. This ring is turned at 45o to allow cables to pass through the ring at different angles without binding.
  • If running a cable parallel to the outside corner, install an outside cable bracket every 2 feet along the outside corner. If running the Net Cable around the corner, use 1 bracket where the cable will go around the outside corner.
  • Fasteners not included. Use the fasteners that best suit the installation surface.
  • Stainless Outside Corner Cable Brackets are sold individually.
Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)

Stainless Outside Corner Bracket


Item #:
Price:
Sale Price:
Stainless Outside Corner Cable Bracket installation specs
  • Fasten the Stainless outside corner brackets with the fasteners that best suit the installation surface. Hardware is not included. If you are not sure what to use, contact Nixalite of America Inc.
  • If the cable must run parallel to the outside corner, install an outside corner bracket every 2 feet along the outside corner.
  • If the cable has to go around the corner, install one outside corner bracket where the path of the cable crosses the outside corner.
When and Where to Use the Stainless Outside Corner Cable Bracket:

Used to guide the Net Cable around or parallel to a structural outside corner. Used with the tensioned perimeter cable systems for bird netting.
Stainless Outside Corner Cable Bracket Installation Tips:
  • Fasteners are not included. Use the fasteners that best suit the installation surface.
  • Run the cable in the ring welded at the outside corner.

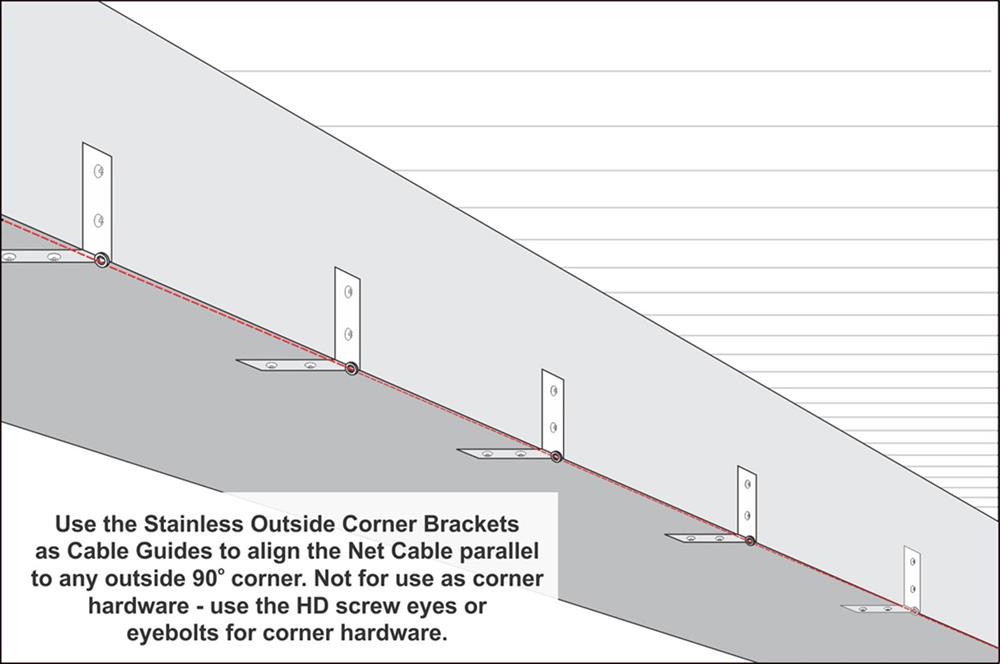

  • To guide the cable parallel to the outside corner, install one bracket every 2 feet along the corner.

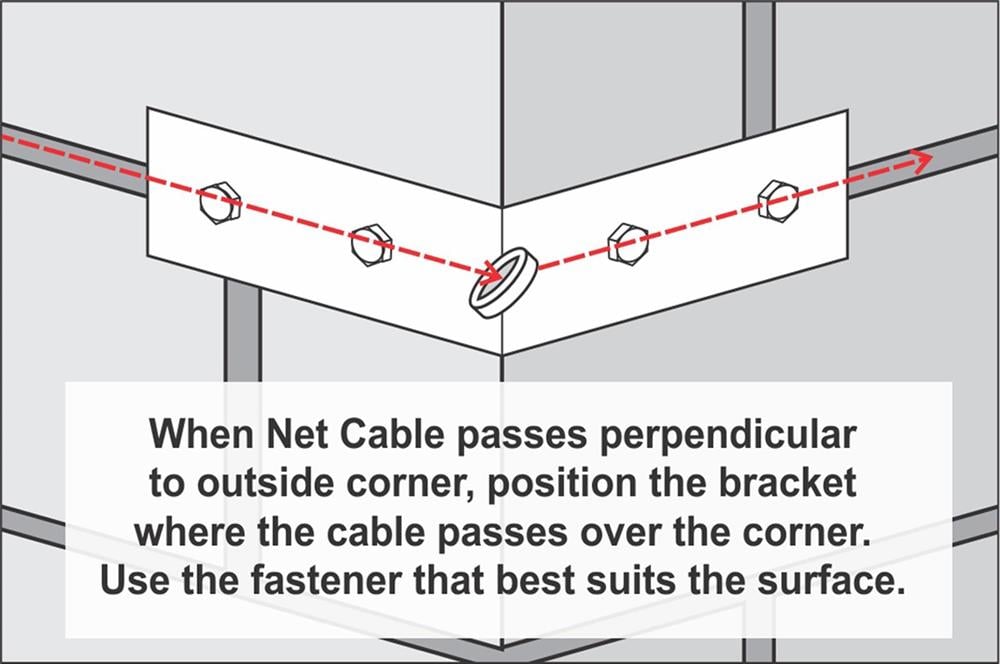

  • To guide the cable across (perpendicular) to the corner, install one bracket where the path of the cable crosses the outside corner.
  • IMPORTANT: Always make sure the the surface will support the tension from the cable system. Do not attach corner hardware to surfaces in poor condition or where there is no structural support.
  • Always follow the Cable and Cable Hardware maintenance schedules available from Nixalite of America Inc.
Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

Cable Guides - Hardware designed to keep the cable close to the installation surface and prevent gaps between the surface and the bird netting.

Stainless Outside Corner Cable Bracket
  • Stainless outside corner brackets are used to simplify the process of running the Net Cable around or along an outside corner.  Without the bracket, running Net Cable around or along the corner used multiple sets of hardware on each side of corner – often running the risk of damaging the surface.
  • Made of 1-3/8” wide and 1/16” thick stainless steel stock, the outside corner bracket has 2 legs 4” long that mount on either side of a 90o corner. Each leg has 2 - 7/32” diameter mounting holes.
  • On each bracket there is a single HD stainless steel ring welded to the outside corner. This ring is turned at 45o to allow cables to pass through the ring at different angles without binding.
  • If running a cable parallel to the outside corner, install an outside cable bracket every 2 feet along the outside corner. If running the Net Cable around the corner, use 1 bracket where the cable will go around the outside corner.
  • Fasteners not included. Use the fasteners that best suit the installation surface.
  • Stainless Outside Corner Cable Brackets are sold individually.
Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)
Stainless Outside Corner Bracket
NASCB $ 6.75 In stock
Stainless steel bracket with welded ring at outside corner. Use as a cable guide for any outside corners along short run cable installations.
