Stainless lag threaded eyelet cable guide

Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

Cable Guides - Hardware designed to keep the cable close to the installation surface and prevent gaps between the surface and the bird netting.

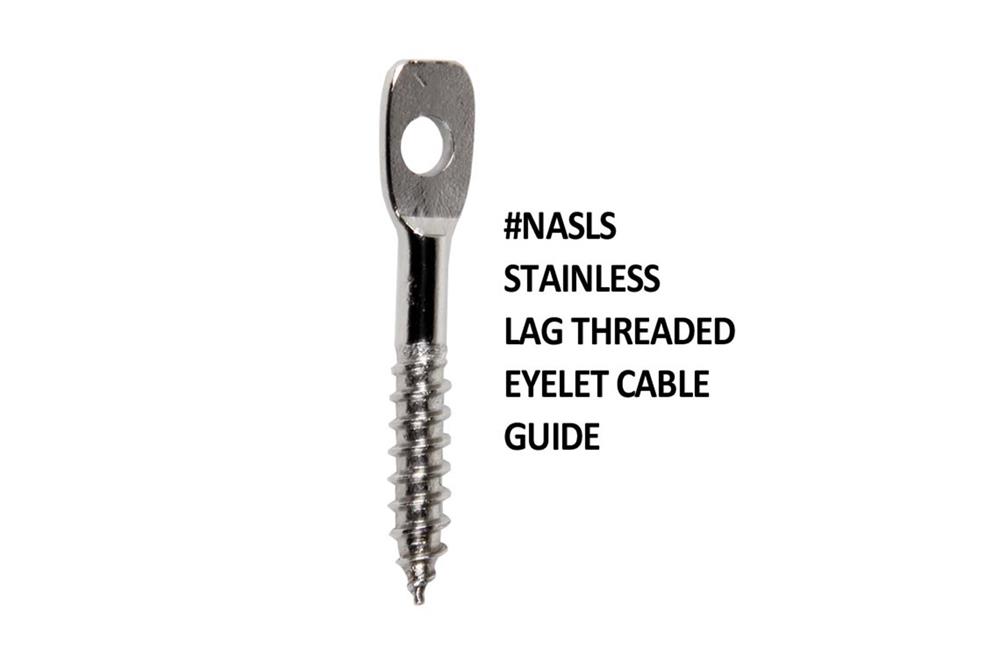

Stainless Lag Threaded Eyelet Cable Guide
  • Stainless Lag Threaded Eyelets are used as Cable Guides on wood, plastic or composite surfaces.
  • All stainless steel with a 5/32” ID eyelet and a 1” long 1/8” lag thread.
  • Install all cable guides every 2 feet along the path of a straight cable run. Tighter spacing (closer together) may be needed on curved or complex surfaces to keep the cable close to the installation surfaces.
  • Used as cable guide hardware for overhead wire grid systems and for support and reinforcement cables used along with our deer and perimeter fence hardware.
  • Stainless Lag Threaded Eyelets are sold in packages of 10 each.
Available in packages of 10

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)

Stainless lag threaded eyelet cable guide


Item #:
Price:
Sale Price:
Stainless Lag Threaded Eyelet installation specs
  • For wood and covered wood surfaces (wood beams, glue lams, timbers, ledge flashing, etc.).
  • Pre-drill surfaces to prevent surface damage. For wood, drill small pilot-hole at least 1/2” deep. For sheet metal flashing over wood, you may need 2 pilot-holes, 1 for the sheet metal and a smaller one for the wood core.
  • For use as Cable Guides, install the small stainless steel screw eyes every 2 feet. Tighter spacing may be required on curved or complex surface shapes.
  • Make sure Cable Guide holds cable within ½” of the installation surface.
When and Where to Use Stainless Lag Threaded Eyelets:
  • The Stainless Lag Threaded Eyelets are designed to be used as Cable Guides in both wood and sheet metal surfaces. Used with the tensioned perimeter cable systems used to secure bird netting enclosures and with overhead grid wire systems.
  • Also may be used with our deer & perimeter fence to create support cables for fence posts.
Stainless Lag Threaded Eyelet Installation Tips:
  • Always pre-drill the surface. This helps prevent damage from splitting.
  • A small screw eye driver (not included) can be used to install the eyelets. Drive the eyelet until the head of the eyelet is touching the surface.
  • Do not use screw eyes in thin sheet metal surfaces. Contact Nixalite of America Inc for alternatives.
  • IMPORTANT: Always make sure the the surface will support the tension from the cable system. Do not attach corner hardware to surfaces in poor condition or where there is no structural support.
  • If attaching in wood, make sure the wood is solid, dry and has no rot or end checking. Do not install any hardware into a wood knot.
  • Always follow the Cable and Cable Hardware maintenance schedules available from Nixalite of America Inc.
Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

Cable Guides - Hardware designed to keep the cable close to the installation surface and prevent gaps between the surface and the bird netting.

Stainless Lag Threaded Eyelet Cable Guide
  • Stainless Lag Threaded Eyelets are used as Cable Guides on wood, plastic or composite surfaces.
  • All stainless steel with a 5/32” ID eyelet and a 1” long 1/8” lag thread.
  • Install all cable guides every 2 feet along the path of a straight cable run. Tighter spacing (closer together) may be needed on curved or complex surfaces to keep the cable close to the installation surfaces.
  • Used as cable guide hardware for overhead wire grid systems and for support and reinforcement cables used along with our deer and perimeter fence hardware.
  • Stainless Lag Threaded Eyelets are sold in packages of 10 each.
Available in packages of 10

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)
Stainless lag threaded eyelet cable guide New
NASLS $ 7.00 New
Stainless steel lag threaded eyelet cable guide. Screws into wood, plastic, composite, etc.
