E-Z Clip

Tensioned Cable Hardware - Provides a solid perimeter and support foundation to which all types of bird netting can be fastened.

Cable Guides - Hardware designed to keep the cable close to the installation surface and prevent gaps between the surface and the bird netting.

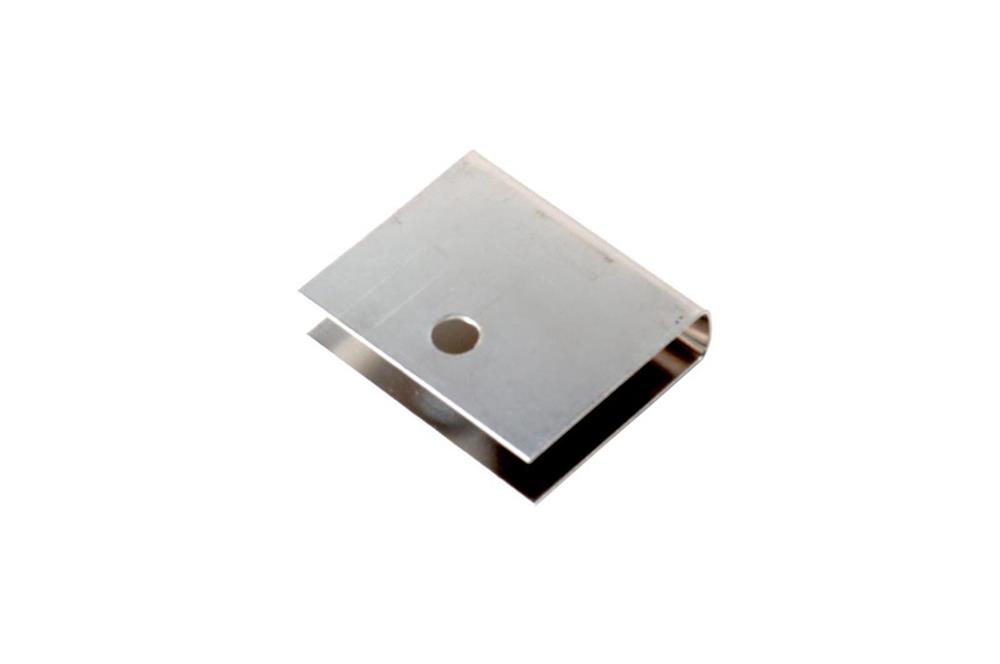

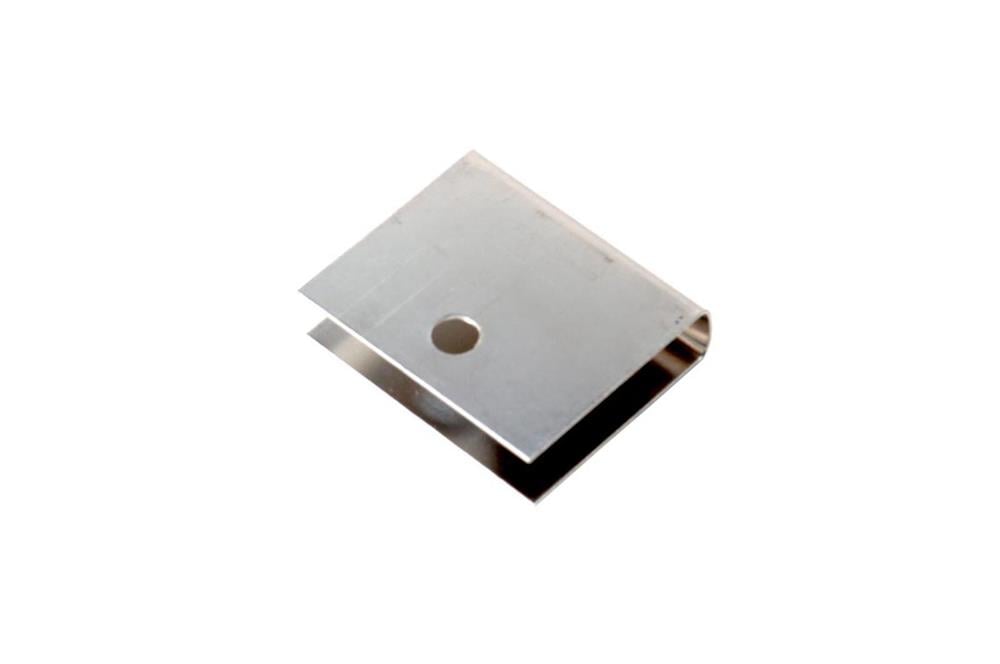

E-Z Clip Cable Guide

Stainless steel E-Z Clips are used as Cable Guides on all types of installation surfaces.

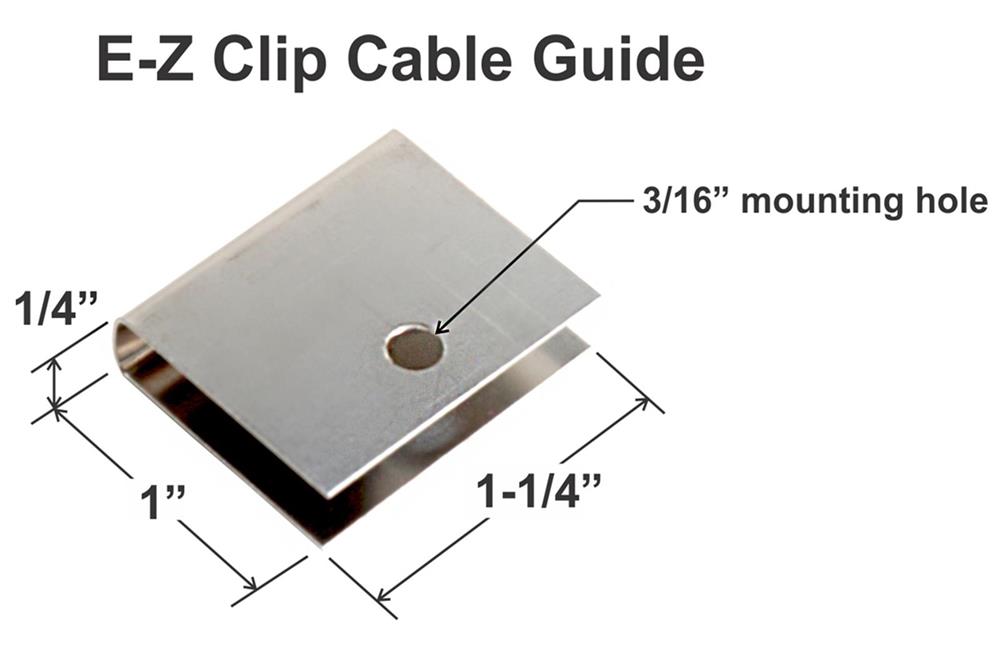

Stainless steel sheet metal clip with 3/16” diameter mounting hole. Simple, versatile and long lasting cable guide.
Accepts all manner of mechanical fasteners that will fit through the 3/16” diameter mounting hole. Use the hardware best suited to the surface material. Fasteners not included.
Install all cable guides every 2 feet along the path of a straight cable run. Tighter spacing (closer together) may be needed on curved or complex surfaces to keep the cable close to the installation surfaces.
Made in the USA
E-Z Clip Cable Guides are sold in packages of 10 each.

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)

E-Z Clip

Item:
Item #:
Price:
Sale Price:
Qty:

Installation Specs
Applications
Installation Tips
Downloads

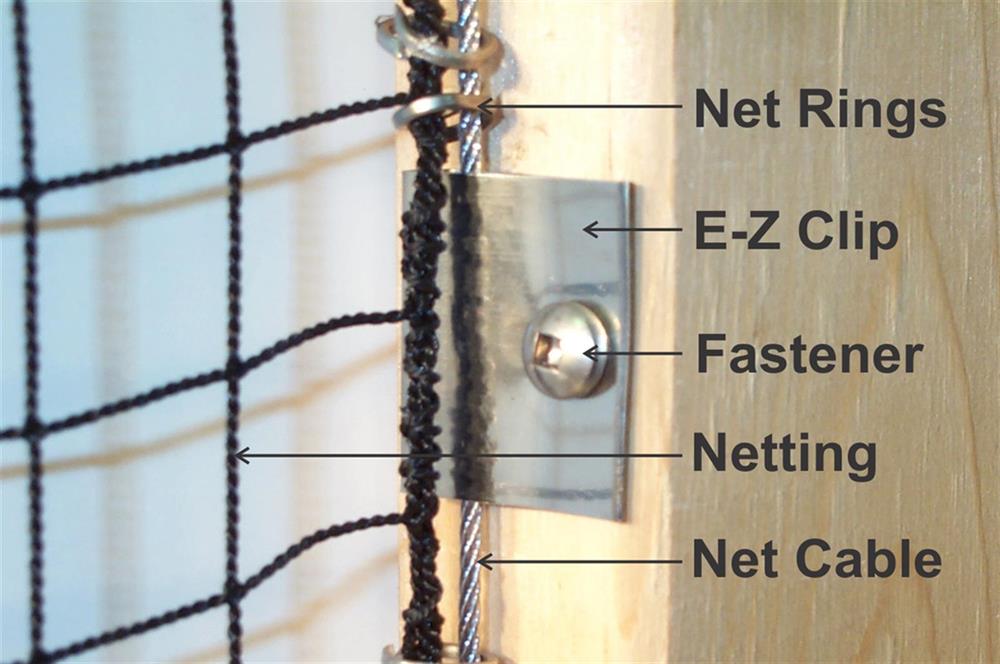

E-Z Clip Cable Guide installation specs

Fasten the E-Z Clip to the surface using the fastener that best suites the surface material. Make sure the hardware will fit through the 3/16” mounting hole.
Make sure the E-Z Clip cable guide is aligned so the cable will pass cleanly through clip.
When installed properly the cable will be within ¼” of the installation surface.

When and Where to Use the Galvanized Net Spike Cable Guide:

The E-Z Clips are designed to be used as Cable Guides on all types of installation surfaces. Used with the tensioned perimeter cable systems for bird netting and to secure the welded wire mesh barriers.

E-Z Clip Cable Guide Installation Tips:

Fasteners not included. Choose the fastener that best suits the installation surface.
Make sure the E-Z Clip is aligned with the path of the cable.
IMPORTANT: Always make sure the the surface will support the tension from the cable system. Do not attach corner hardware to surfaces in poor condition or where there is no structural support.
Always follow the Cable and Cable Hardware maintenance schedules available from Nixalite of America Inc.
