Effective Pest Bird & Wildlife Control Solutions Proud to be Family Owned and Operated Since 1950!

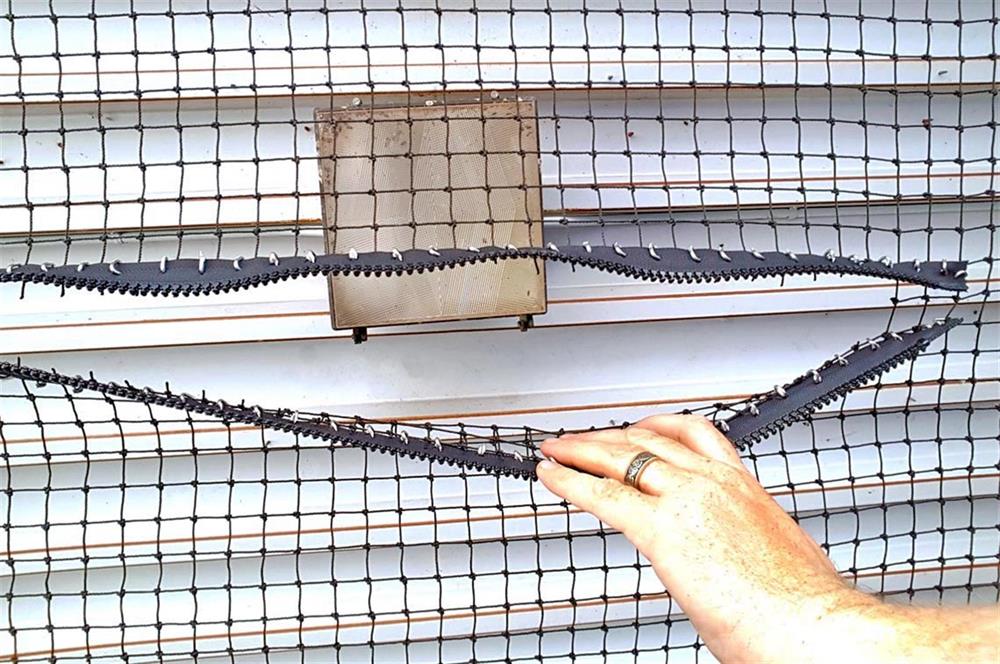

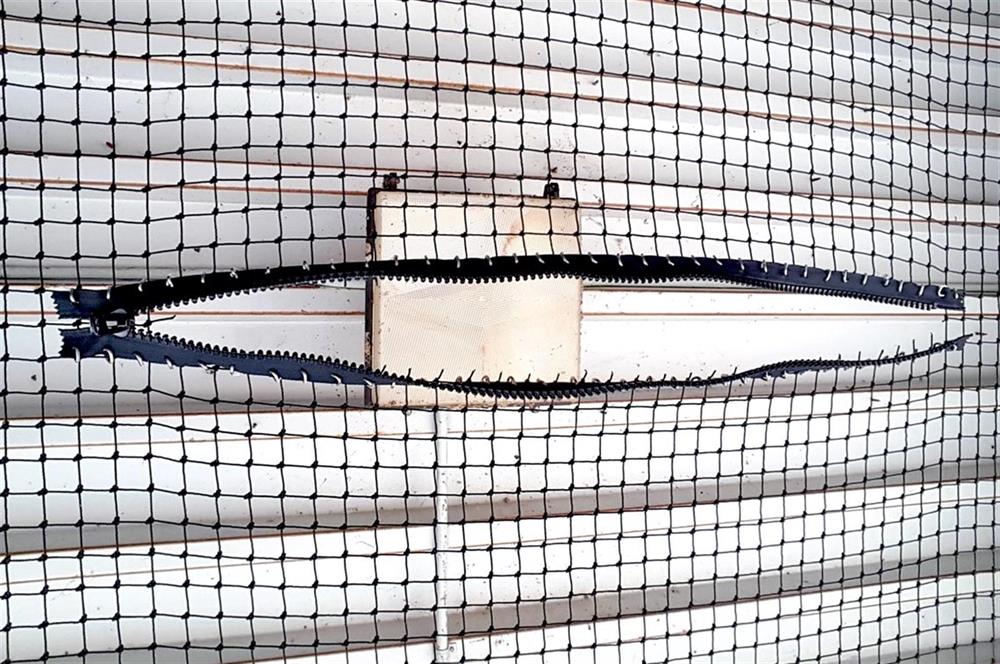

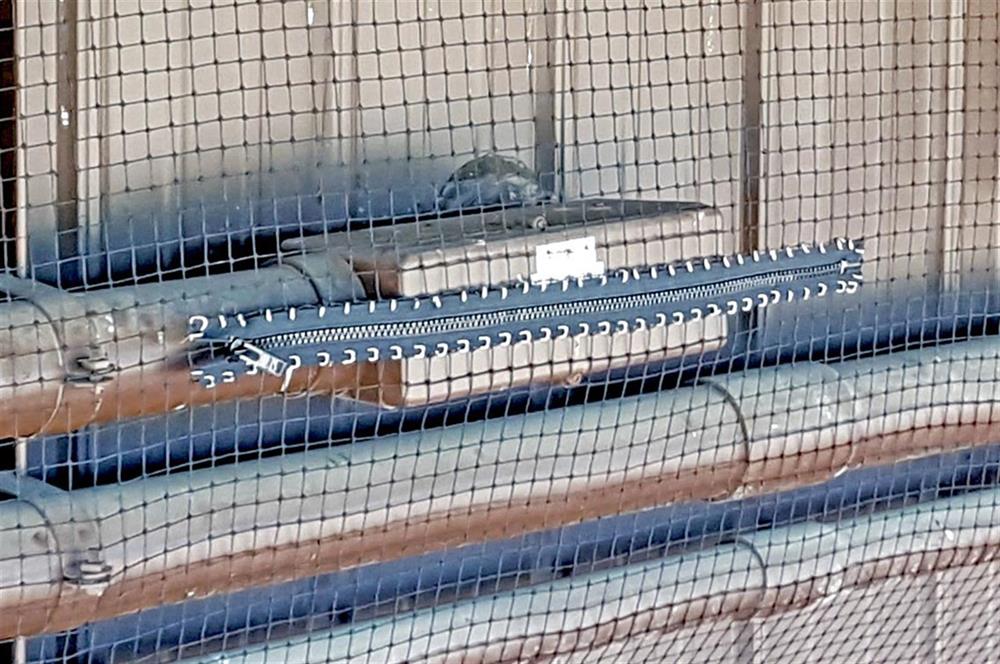

Nixalite Pneumatic C Ring Tool HC716 King Steel Pneumatic C Ring Tool C Rings Stainless Steel Net zipper install Net Zipper install closed Net Zipper install open Net installation
Click an image to see a larger picture.

HC716 C-Ring Tool – Pneumatic Air-Powered C-Ring Installer | Nixalite

Netting Accessories and Tools

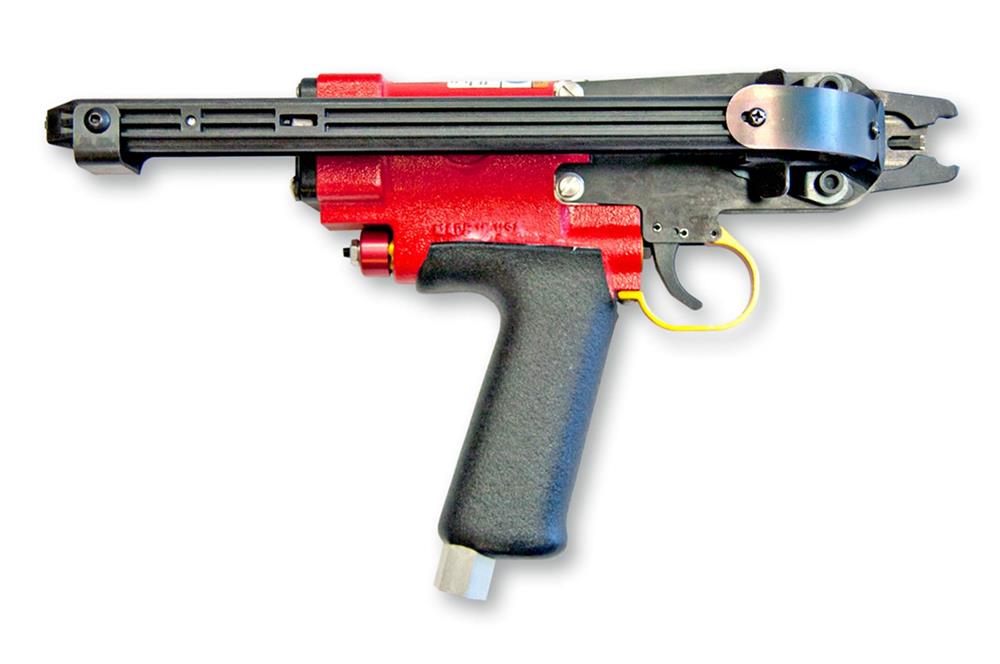

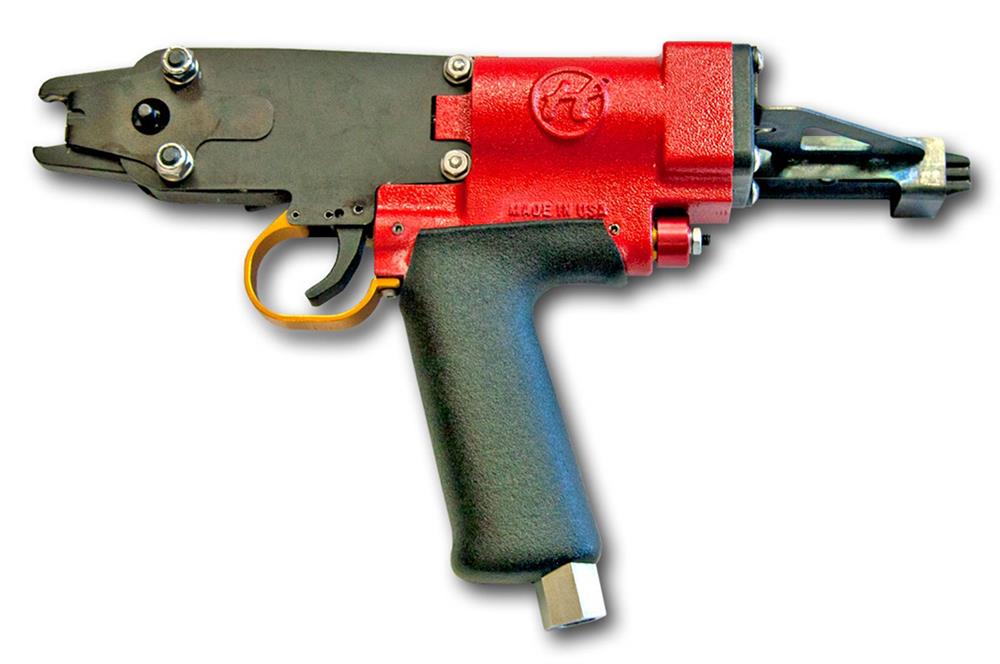

The HC716 C-Ring Tool is a premium pneumatic plier designed for fast, efficient installation of stainless steel C-rings. Perfect for mesh netting, cable attachments, bird control, and small hardware projects, it accepts 16-gage 3/4″ stainless C-rings and features a rear-loading magazine with a capacity of 110 rings.

HC716 Pneumatic C-Ring Tool Specifications:

Dimensions: 12-3/4" long X 8-5/8" high X 3-5/8" wide
(32.3cm long X 22cm high X 9.3cm wide)
Weight: 3.0 pounds / 1.3kg
Magazine type: rear loading
Staple type: C style, 3/4"
Magazine capacity: 110 rings (1 strip)
Operating pressure: 95 psi (0.6 Nmm2)
Max. operating pressure: 100 psi (0.69 Nmm2)
Air consumption/cycle: 3.2 cubic inch (0.08 cubic meter)
Inner air hose diameter required: 3/8" (9.5mm)
Sound at gun: 82dB
Made in the USA

What's in the box? Operator's manual, spare parts list, service instructions.

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)

HC716 C-Ring Tool – Pneumatic Air-Powered C-Ring Installer | Nixalite


Item #:
Price:
Sale Price:
ItemDescriptionPriceQty

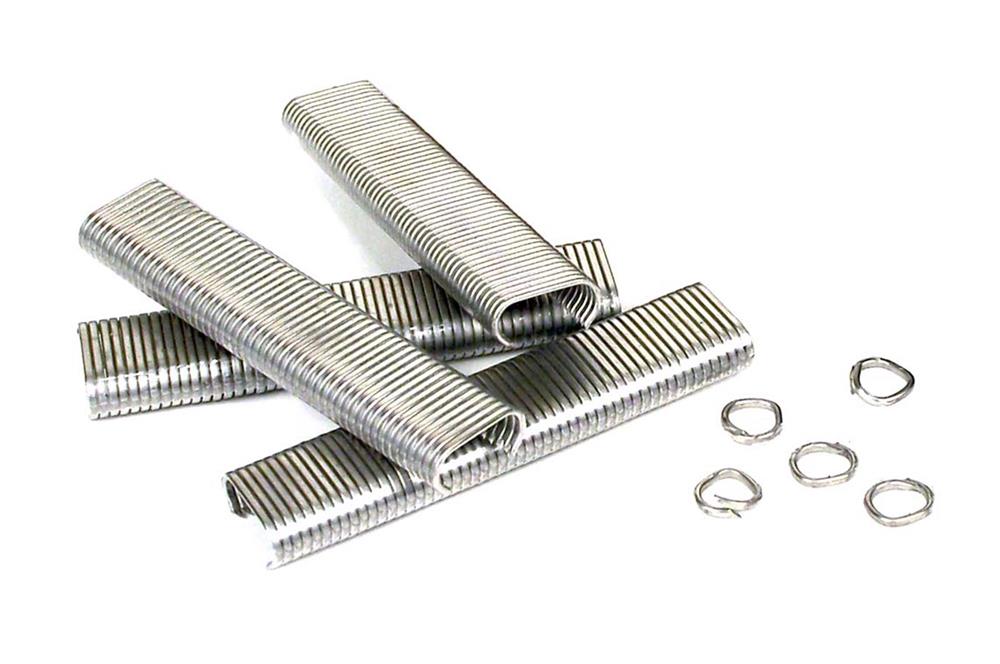

C Rings Stainless 3/4 C Rings Stainless 3/4" C-Rings for C-Ring Tool 11,000 ct Box $186.00
How Many Rings do I need?

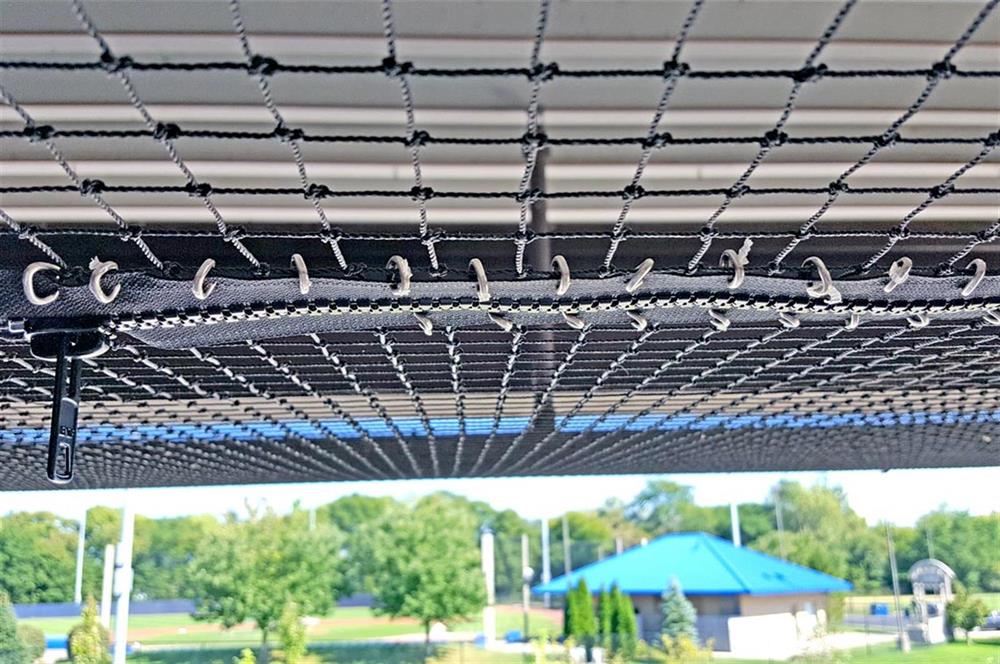

Cable Attachment: 1 ring per mesh
For 9/16" mesh size use 20 rings per foot
For 3/4" mesh size use 16 rings per foot
For 2" mesh size use 6 rings per foot

Zipper Attachment: 1 ring per mesh on both sides of Net Zipper
EXAMPLE: 2 foot zipper on 3/4" net uses 64 rings (32 per side)

Seam Fastening: 1 ring per mesh on each side of overlap seam
EXAMPLE: 10 foot long seam on 3/4" net uses 320 rings (160 per side)

Netting Accessories and Tools

The HC716 C-Ring Tool is a premium pneumatic plier designed for fast, efficient installation of stainless steel C-rings. Perfect for mesh netting, cable attachments, bird control, and small hardware projects, it accepts 16-gage 3/4″ stainless C-rings and features a rear-loading magazine with a capacity of 110 rings.

HC716 Pneumatic C-Ring Tool Specifications:

Dimensions: 12-3/4" long X 8-5/8" high X 3-5/8" wide
(32.3cm long X 22cm high X 9.3cm wide)
Weight: 3.0 pounds / 1.3kg
Magazine type: rear loading
Staple type: C style, 3/4"
Magazine capacity: 110 rings (1 strip)
Operating pressure: 95 psi (0.6 Nmm2)
Max. operating pressure: 100 psi (0.69 Nmm2)
Air consumption/cycle: 3.2 cubic inch (0.08 cubic meter)
Inner air hose diameter required: 3/8" (9.5mm)
Sound at gun: 82dB
Made in the USA

What's in the box? Operator's manual, spare parts list, service instructions.

Tensioned Cable Hardware Installation
Estimate for Net Hardware

(See the Downloads tab for additional information)

Related Items

K-Net HT Bird Netting

K-Net HT Bird Netting

  • Our Strongest & Best Bird Netting
  • 15 Year Limited Warranty
  • 75 lbs. Knotted Breaking Strength
  • 12-ply High Density Polyethylene
  • ¾”  (19mm) Square Mesh
  • Abrasion/UV/Flame/Rot Resistant
  • 25 & 50 ft. widths
  • 25, 50 & 100 ft. lengths
  • Pre Stretched & Folded Square
  • ISO 9001-2000 Quality Standard

Net Cable Stainless Steel

Net Cable Stainless Steel
HD Stainless Steel aircraft cable, 7x7, 3/32” (2mm) diameter with 920 lb. tensile stength. Available in 250' and 500' spools.

HC716 C-Ring Tool – Pneumatic Air-Powered C-Ring Installer | Nixalite
C Ring Tool $ 995.00 In stock

HC716 Pneumatic C-Ring Tool – lightweight, durable, and air-powered. Designed for 3/4″ 16-gage stainless steel rings. Perfect for netting, cable, and bird-control installs.
C Rings
C Rings 3/4" stainless steel C-Rings for the Air Powered C-Ring Tool. Collapses down to 1/8" inside diameter. 11,000 rings per box in 100 count sleeves. Requires C-Ring tool.
