IGEBA TF-34 Thermal Fogger

	Item	Description	Price	Qty
	IGEBA RPK34	IGEBA TF-34 Replacement Parts Kit	$150.00
	IGEBA NOZ	IGEBA Special Dosage Nozzle for Fogging Repellents	$72.00
	IGEBA WCK34	TF-34 Water Converstion Kit	$120.00

IGEBA TF-34 Specifications

• Weight Empty (lbs/kg): 14.5 / 6,6
• Dimensions Inches: 30.7 x 10.6 x 13.3
• Dimensions Cm: 78 x 27 x 34
• Solution Tank Capacity: 1.5 G / 5,7 L
• Fuel Tank Capacity: 0.3 G / 1,2 L
• Fuel Consumption: 0.2 G hr / 1,1 L hr
• Max Flow Rate (Oil Base): 6.6 G hr / 25 L hr
• Horizontal Reach (indoor): 328 Ft / 100 M
• Ignition Batteries: 4 "D" batteries
• 13.6 Horsepower (10KW)

What's In The Box?

• Owners Manual
• 1 - Large Funnel
• 1 - Small Funnel
• 1 - 9" Solution Syphon
• 1 - AA Battery Adapter
• 1 - Shoulder Strap
• 1 - Tool Kit Including: Cleaning Brush, Combo Screwdriver, Carbon Tool, Wrench Set, Extra Dosage Nozzle and Small Diaphragm & Gasket Kit

IGEBA TF-34 National Stock Number NSN 3740-12-375-2077

Use The TF-34 For:

• Applying EcoBird Repellent requires optional control valve.

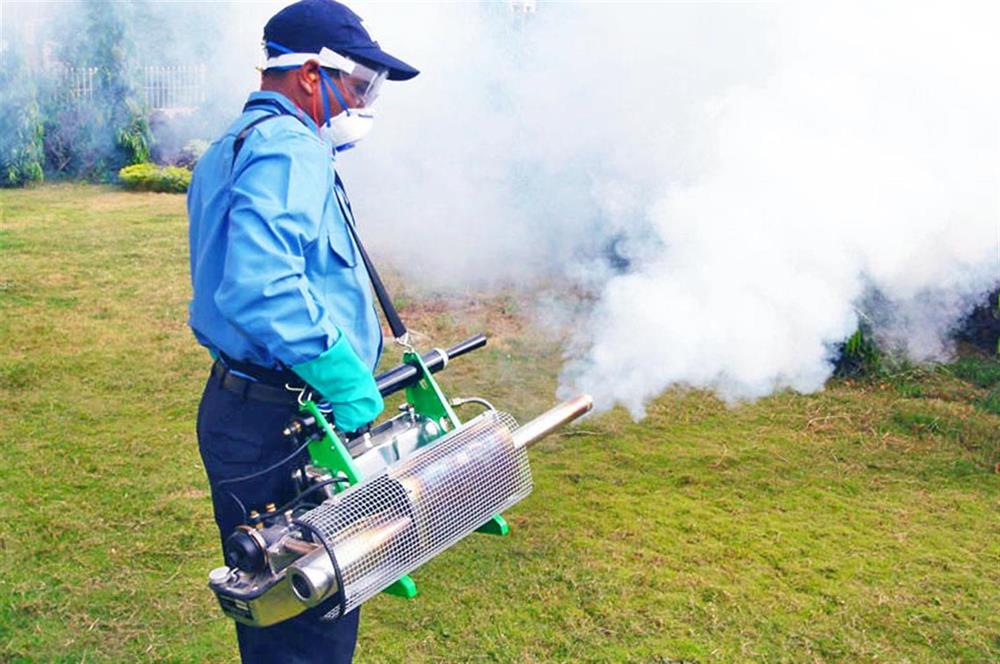

• Mosquito, gnat, fly and other flying insect control.
• Disease control through insect, bacterial and fungal control.
• Mold & mildew control in commercial and residential applications.
• Hydrate greenhouses, plant nurseries, gardens, etc.
• Fogging for stored products and potato sprout control.
• Special effects applications for fog and smoke.
• Fog oil base formulation in nearly any large structure.
• Apply water based solutions with optional "W" tube.

Using EcoBird in your TF-34:

If using EcoBird repellent in your TF-34 see the additional options tab.

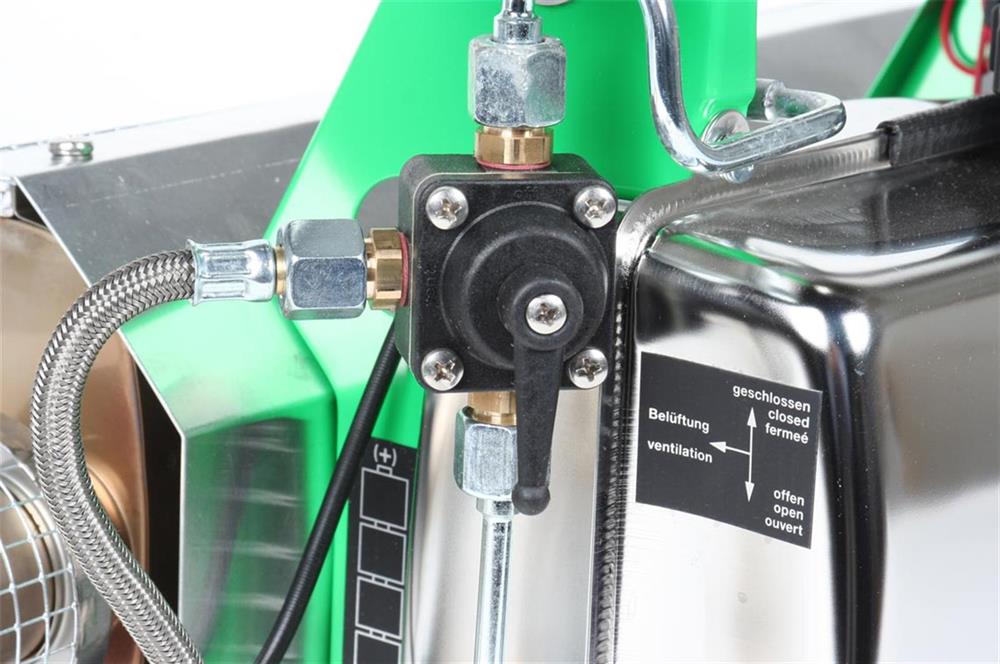

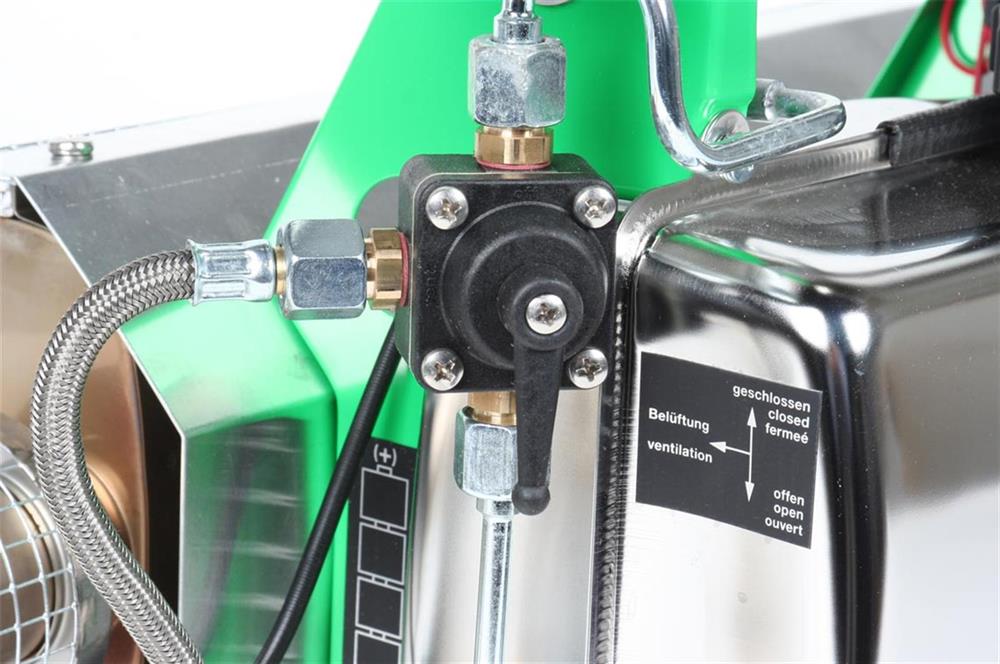

IGEBA has designed Custom Flow Valves just for the application of EcoBird repellent.

Additional TF-34 Options:

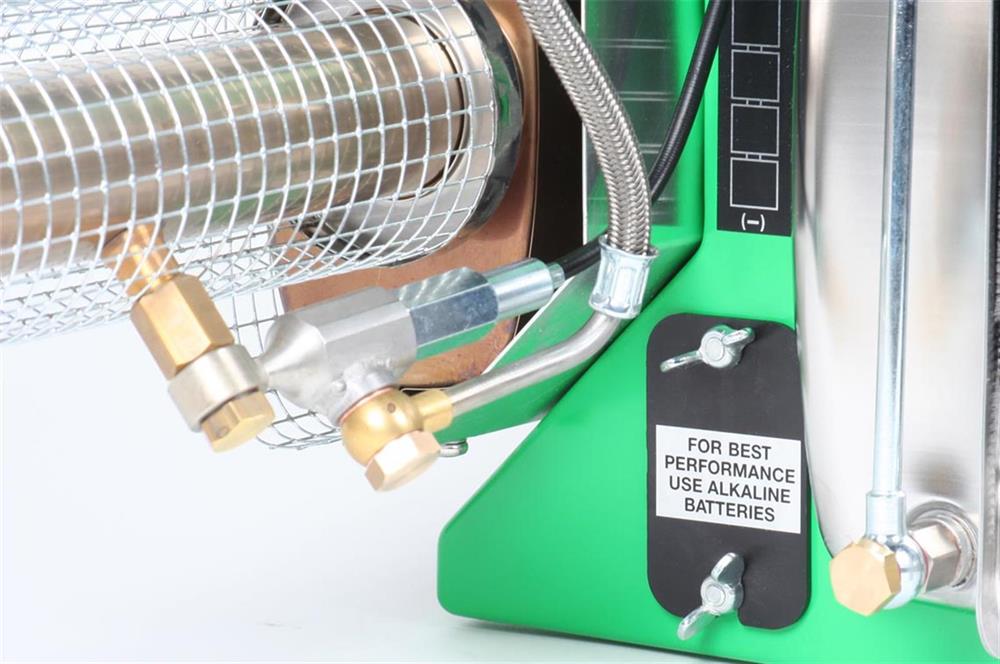

Special Dosage Nozzle made just for the application of EcoBird Bird Repellent. Select Item # IGEBA NOZ.

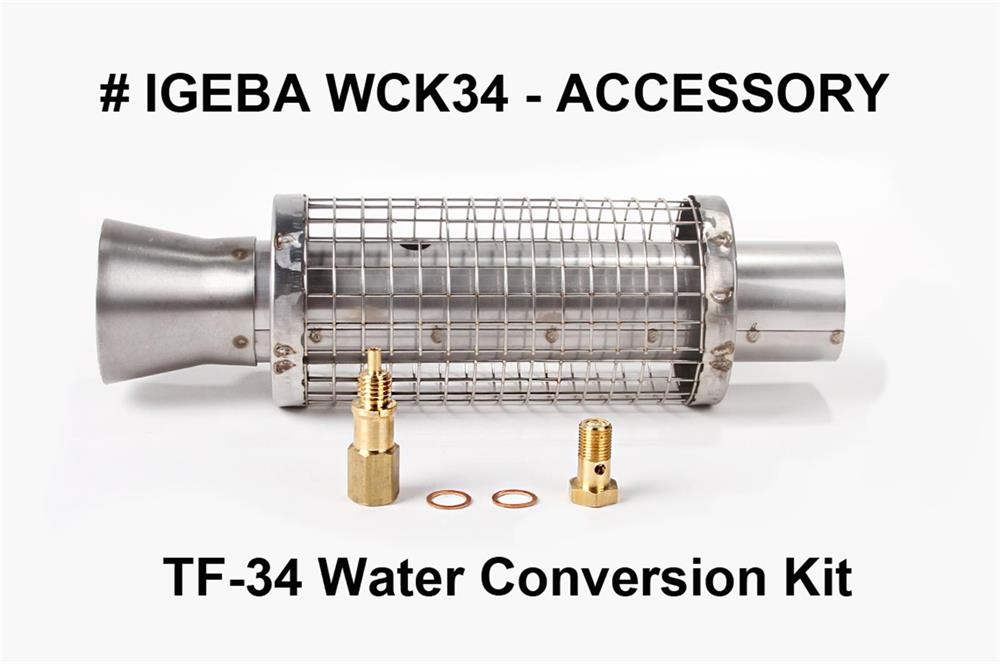

Additional Water Conversion Kit allows the use of water based formulations. Select Item # IGEBA WCK34.

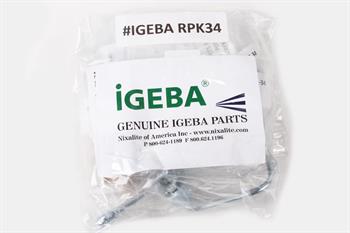

IGEBA RPK34: Replacement parts pack has all of the consumable parts you need to maintain your fogger.

IGEBA TF-34 Documents

TF-34 Brochure
TF-34 Owners Manual
TF-34 Parts List


iGEBA TF-34 "How To" Series
       Protecting your investment

Startup, Tuning & Running the IGEBA TF-34
Installing the TF-34 Water Conversion Kit
Clean or Replace the IGEBA TF-34 Diapgram

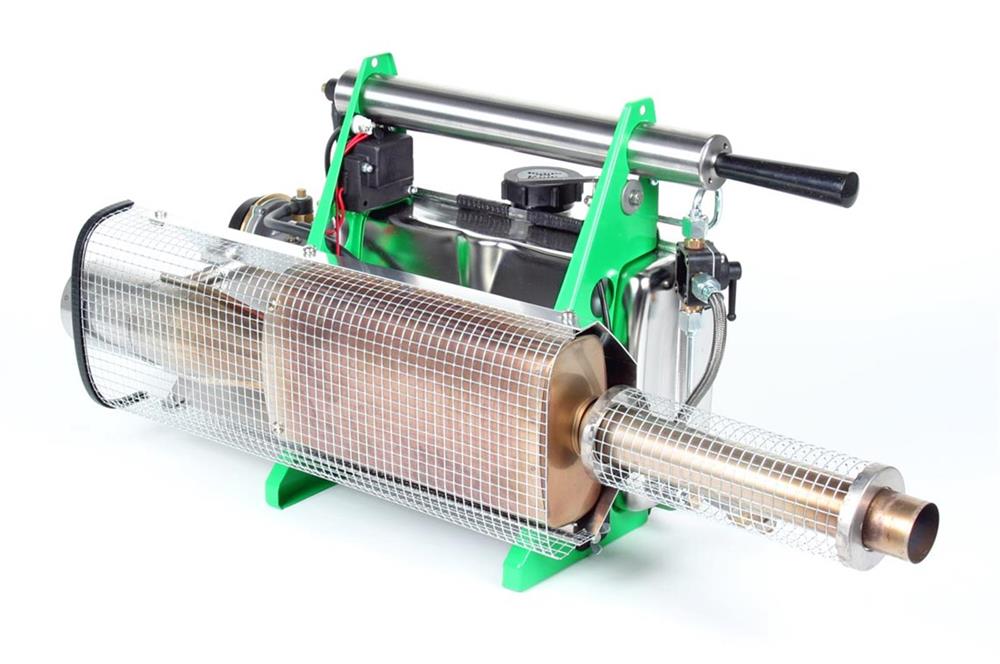

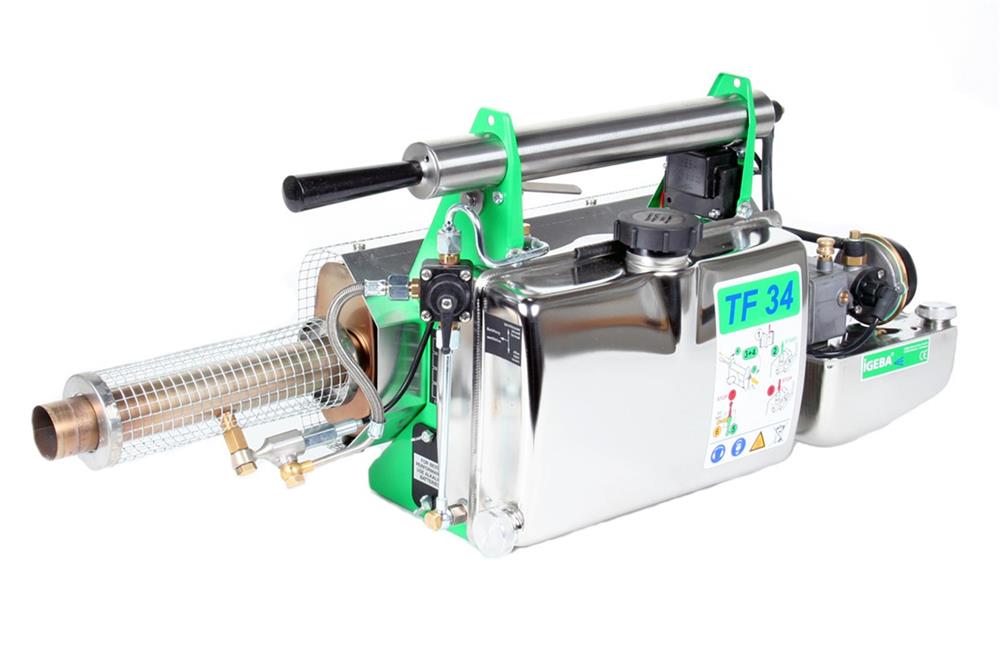

IGEBA^® TF-34 Pulse Jet Thermal Fog Generator
A compact thermal fogger designed for indoor and outdoor fogging applications including mosquito control, disinfection, stored products, vector and odor control.

National Stock Number (NSN): 3740-12-375-2077
Federal Supply Class: 3740
National Item Identification Number: 123752077

THE IGEBA TF-34 is Our Best Compact Thermal Fogger!

IGEBA TF-34 Standard Features

• Stainless steel fuel tank and formulation tank.
• 4140 stainless steel expansion chamber & tube.
• All other parts contacting solution are made of brass or Teflon.
• Easiest starting pulse-jet fogger! Has stainless steel air pump assist.
• Lightweight unit; weighs only 14.5 lbs/ 6,6 kg empty.
• Optional precision valve made just for the application of EcoBird Bird Repellent
• Global ISO 9001 Certificate awarded to all IGEBA foggers.
• Absolutely reliable ignition uses 4 "D" cell batteries - no spark plugs.
• Convenient stainless steel drain at the bottom of solution tank.
• Comes with: operators manual (book and CD), maintenance kit, extra dosage nozzles, and more.
• Lowest NO2 and CO exhaust emissions of any thermal fogger available.

NOTE: DO NOT USE STERI-FAB IN THIS FOGGER.

Nixalite of America is the only authorized distributor and service center for IGEBA Thermal and ULV Fogging Equipment serving the United States and Canada.
