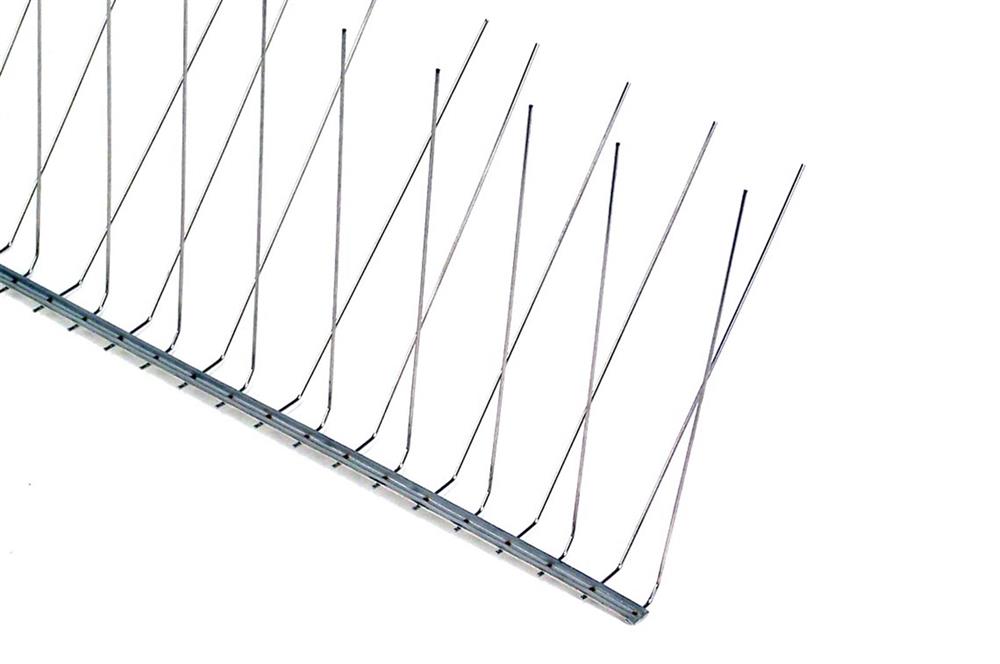

E-Spike Half Row Bird Spikes

E-Spike is our most affordable, stainless steel, half row pigeon and seagull control spike. It covers up to 7" of surface with a single row. E-Spike Half Row is 3" wide, 4" high and has 24 points/foot. This bird deterrent spike is flexible, long lasting and economical. Blunt Tip option is available.

Mounting Hardware for E-Spike is not included and must be purchased separately from the accessory list below or go to the Mounting Hardware page.
Made in the USA
Available in 2 or 4 foot strips
Call For ColorCoat or Blunt Tip Orders


Installing E-Spike


(For more technical documents, see the Resources tab)

E-Spike Half Row Bird Spikes



Item #:
Price:
Sale Price:
ItemDescriptionPriceQty
MHD 75 75 Stainless Drive Screws MHD 75 75 Stainless Drive Screws $9.00
MHS 75 75 Stainless Steel Screws MHS 75 75 Stainless Steel Screws $9.00
MHRB 75 75 Stainless RB Clips MHRB 75 75 Stainless RB Clips $9.00
MHW 75 75 Neoprene Washers MHW 75 75 Neoprene Washers $2.25
MHA 75 75 Nylon Anchors MHA 75 75 Nylon Anchors $9.00
MHGC Glue Clip MHGC Glue Clip $.75
MHWT12 75 75 - 12 MHWT12 75 75 - 12" Stainless Wire Ties $11.25
MHWT18 75 75 - 18 MHWT18 75 75 - 18" Stainless Wire Ties $11.25
MHWT24 75 75 - 24 MHWT24 75 75 - 24" Stainless Wire Ties $11.25
NT87 Nixalite Installation Tool NT87 Nixalite Installation Tool $11.98
WT20 Wire Tying Tool WT20 Wire Tying Tool $9.98
CT93 Cutting Tool CT93 Cutting Tool $18.98
600C E6800 Adhesive Cartridge - No Air Delivery 600C E6800 Adhesive Cartridge - No Air Delivery $9.98
EBCLR125 ECO-BOND Clear Sealant & Adhesive 10oz Cartridge EBCLR125 ECO-BOND Clear Sealant & Adhesive 10oz Cartridge $9.50

E-Spike Pigeon & Seagull Eco-Spike Stainless Steel

  • 100% high grade stainless steel construction makes it UV and fire proof
  • Made in the USA from stainless produced in the USA

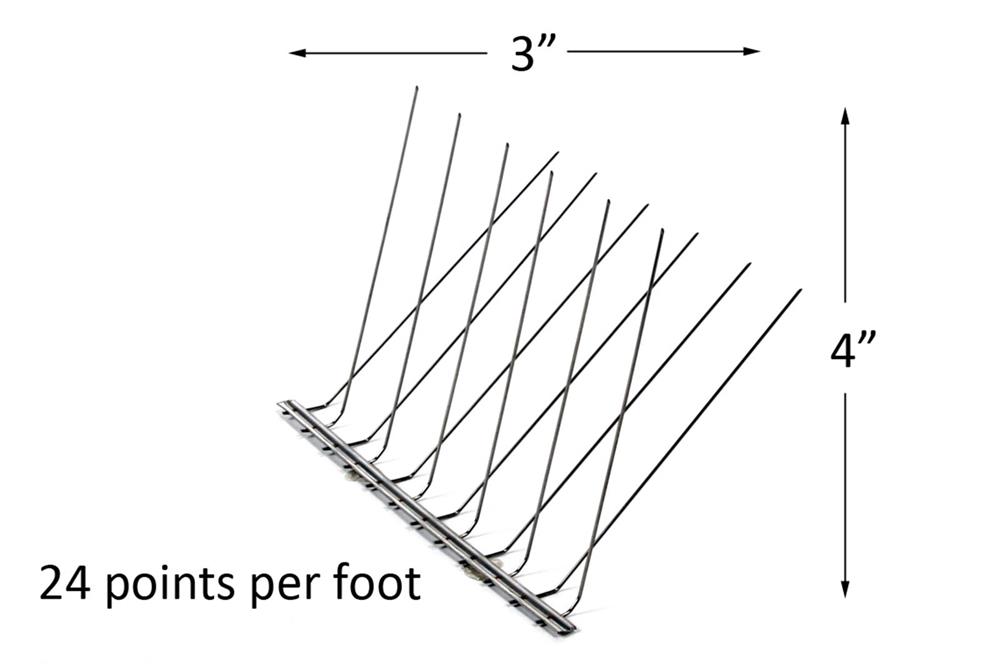

  • E-Spike Half Row is 3" wide, 4" high and has 24 points/foot
  • E-Spike comes in 2 and 4 ft lengths with either pointed or Blunt Tip wires
  • No assembly, E-Spike comes ready to install
  • Flexible 1/4" base that follows surface shapes
  • Available in ColorCoat colors
  • Install with Mounting Hardware or Adhesive

Applications
Use E-Spike for pigeons and seagulls only. Do not use E-Spike to control small birds or to prevent heavy infestations of any type of bird. For total surface control, use Nixalite Premium Bird Barrier Spikes.

CSI Specifications;
CSI Details for E-Spike Half Row bird spikes, mounting hardware, surface cleaning systems and installation accessories.

PDF file      Word Document      Text File

CAD Details;
E-Spike Half Row CAD Drawing
E-Spike Half Row CAD Drawing (DWG) - Requires CAD software to open

BIM Objects Requires CAD software to open
E-Spike Half Row (DXF)     E-Spike Half Row (DGN)     E-Spike Half Row (DWG)     E-Spike Half Row (RFA)



E-Spike & Pigeon Spike Stainless Automated Estimate Worksheet

The Automated Estimate Worksheet will provide everything you need to accurately estimate the E-Spike & Pigeon Spike Stainless amounts for each installation surface.

What this Automated Estimate Worksheet will do for you:

  1. It will recommend the correct Model or Models (based on surface dimensions).
  2. It will provide you with the quantity of E-Spike and Pigeon Spike Stainless spikes needed to protect each surface.
  3. It will generate an installation diagram that shows the E-Spike and Pigeon Spike Stainless spacing on the surface.

This Automated Estimate Worksheet is for the E-Spike and Pigeon Spike Stainless only.
Use E-Spike or Premium Nixalite models on narrow surfaces.
If planning for a Pigeon Spike Composite installation, go to the Composite Spike page for details.

Before using the Automated Worksheet you must know..

  • The Surface Depth (front to back) in inches or centimeters.
  • The Surface Length (end to end) in feet or meters.
  • The surface exposure (if it is Single Exposed or Double Exposed). If you are not sure, see the examples below or contact Nixalite.
EspikeSingleExposed Single Exposed Surface
is open to one side and has at least
one bordering object such as a wall.
Examples include a building ledge,
window sill, a wall mounted sign, etc.
EspikeDoubleExposed Double Exposed Surface
is open to both sides and has
no bordering objects. Examples
include parapets, pipes, free-
standing beams, etc.
Is your surface single or double exposed? Single Double


Surface width:


Length:      Feet Meters




E-Spike is our most affordable, stainless steel, half row pigeon and seagull control spike. It covers up to 7" of surface with a single row. E-Spike Half Row is 3" wide, 4" high and has 24 points/foot. This bird deterrent spike is flexible, long lasting and economical. Blunt Tip option is available.

Mounting Hardware for E-Spike is not included and must be purchased separately from the accessory list below or go to the Mounting Hardware page.
Made in the USA
Available in 2 or 4 foot strips
Call For ColorCoat or Blunt Tip Orders


Installing E-Spike


(For more technical documents, see the Resources tab)

E-Spike Half Row Bird Spikes
E3-2B8 $ 30.00 New
E3-2B24 $ 90.00 New
E3-2B100 $ 350.00 New
E3-4B8 $ 30.00 New
E3-4B24 $ 90.00 New
E3-4B100 $ 350.00 New
Half row bird spikes covers up to 4" of surface with a single row. The most affordable, flexible, long lasting stainless steel bird barrier spike. Blunt Tip option is available.
Bird Spike Mounting Hardware
MHD 75 $ 9.00 New
Nixalite offers a wide variety of stainless steel or all weather mounting hardware to fasten the Premium Nixalite, E-Spike or Pigeon Spike Stainless Bird Spike models to nearly any surface.
Bird Spike Mounting Hardware
MHS 75 $ 9.00 New
Nixalite offers a wide variety of stainless steel or all weather mounting hardware to fasten the Premium Nixalite, E-Spike or Pigeon Spike Stainless Bird Spike models to nearly any surface.
Bird Spike Mounting Hardware
MHRB 75 $ 9.00 New
Nixalite offers a wide variety of stainless steel or all weather mounting hardware to fasten the Premium Nixalite, E-Spike or Pigeon Spike Stainless Bird Spike models to nearly any surface.
Bird Spike Mounting Hardware
MHW 75 $ 2.25 New
Nixalite offers a wide variety of stainless steel or all weather mounting hardware to fasten the Premium Nixalite, E-Spike or Pigeon Spike Stainless Bird Spike models to nearly any surface.
Bird Spike Mounting Hardware
MHA 75 $ 9.00 New
Nixalite offers a wide variety of stainless steel or all weather mounting hardware to fasten the Premium Nixalite, E-Spike or Pigeon Spike Stainless Bird Spike models to nearly any surface.
Glue Clip
MHGC $ .75 New
Use where surface conditions do not allow the use of the mechanical mounting hardware. Stainless steel sheet metal form with all stainless steel hardware riveted in place.
Bird Spike Mounting Hardware
MHWT12 75 $ 11.25 New
Nixalite offers a wide variety of stainless steel or all weather mounting hardware to fasten the Premium Nixalite, E-Spike or Pigeon Spike Stainless Bird Spike models to nearly any surface.
Bird Spike Mounting Hardware
MHWT18 75 $ 11.25 New
Nixalite offers a wide variety of stainless steel or all weather mounting hardware to fasten the Premium Nixalite, E-Spike or Pigeon Spike Stainless Bird Spike models to nearly any surface.
Bird Spike Mounting Hardware
MHWT24 75 $ 11.25 New
Nixalite offers a wide variety of stainless steel or all weather mounting hardware to fasten the Premium Nixalite, E-Spike or Pigeon Spike Stainless Bird Spike models to nearly any surface.
Nixalite Bird Spike Installation Tool
NT87 $ 11.98 New
Designed to quickly and safely push or pull the Nixalite strips into or out of the Nixalite mounting clips and hardware.
Wire Tying Tool
WT20 $ 9.98 New
Used with the Nixalite Wire Ties. Swivel handle quickly fastens wire ties around Nixalite strips and objects such as pipes.
Strip Cutting Tool
CT93 $ 18.98 New
HD, straight cut aviation snips. Cleanly cuts the Nixalite base strip where desired.
UV6800 Adhesive
600C $ 9.98 New
Use where surface conditions do not allow the use of the supplied mounting hardware. Use with Glue Clips and Wire Ties.
ECO-BOND Sealer/Adhesive
EBCLR125 $ 9.50 New
A green LEED compliant construction clear adhesive, sealant and silicone replacement. Adheres to a wide variety of surfaces and materials.
