Steps to install the SolarGuard Bird Screen Solar Panel Exclusion system:
-

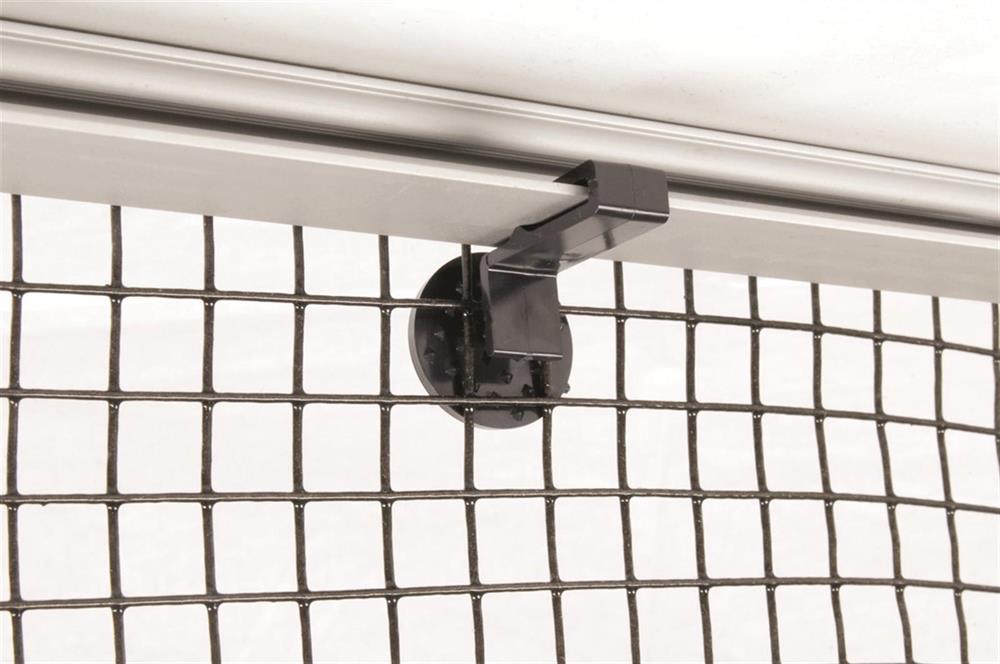

Put the clip end of the fastener onto the panel edge underneath the panel. Use a clip every 18" or less. Slide as far outward as possible so the clip is seated against the lip of the panel.
-
Set the wire mesh screen in place. Make sure the fastener rod comes through the screen at an upward angle to keep pressure of the screen on the rooftop.
-
Slide the speed washer onto the shaft of the clip assembly until snug. Make adjustments to the screen as needed. Tighten the speed washer to the panel edge.
-
Cut off any excess mesh screen sticking over the top edge of the solar panel array. Cut off the clip assembly rod flush with the exterior of the speed washer. Once installed the clip will need to be cut if you need to remove it (single use).
-
Where the corners come together use two pieces of mesh screen. DO NOT try to bend the screen to go around the corner. Attach the corners together using thin bailing wire or UV rated zip ties.
SolarGuard Bird Screen Solar Panel Exclusion Quick Specs:
-
Patent pending clips are UV stable and won't scratch panels
-
Clips are a poly based material - not metal
-
Clips slip over the lip of the solar panel framework - NO drilling
-
Install clips every 18" around the perimeter of the solar arrays
-
Cut the mesh to fit around objects or roof tile shapes
-
Clips are available in 10 or 100 count bags
This clip and wire mesh system prevents pest birds and animals from getting behind the solar panels and damaging the
SolarGuard Bird Screen Solar Panel Exclusion Quick Specs:
-
Patent pending clips are UV stable and won't scratch panels
-
Clips are a poly based material - not metal
-
Clips are single use only.
-
Clips slip over the lip of the solar panel framework - NO drilling
-
Install clips every 18" around the perimeter of the solar arrays
-
Cut the mesh to fit around objects or roof tile shapes
-
Clips are available in 100 count bags
This clip and wire mesh system prevents pest birds and animals from getting behind the solar panels and damaging the electrical or mechanical systems.

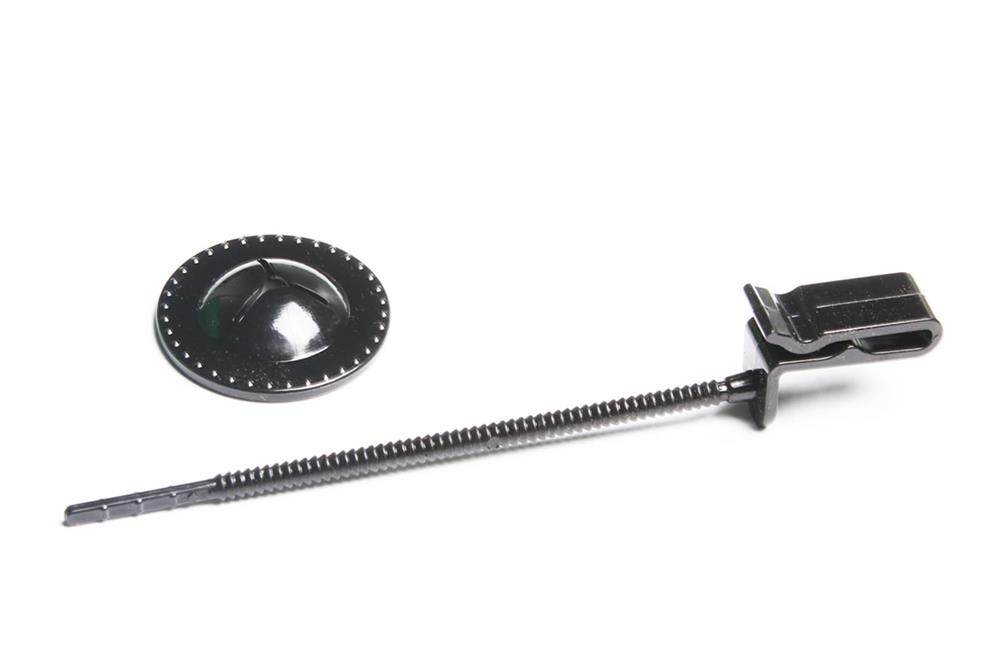

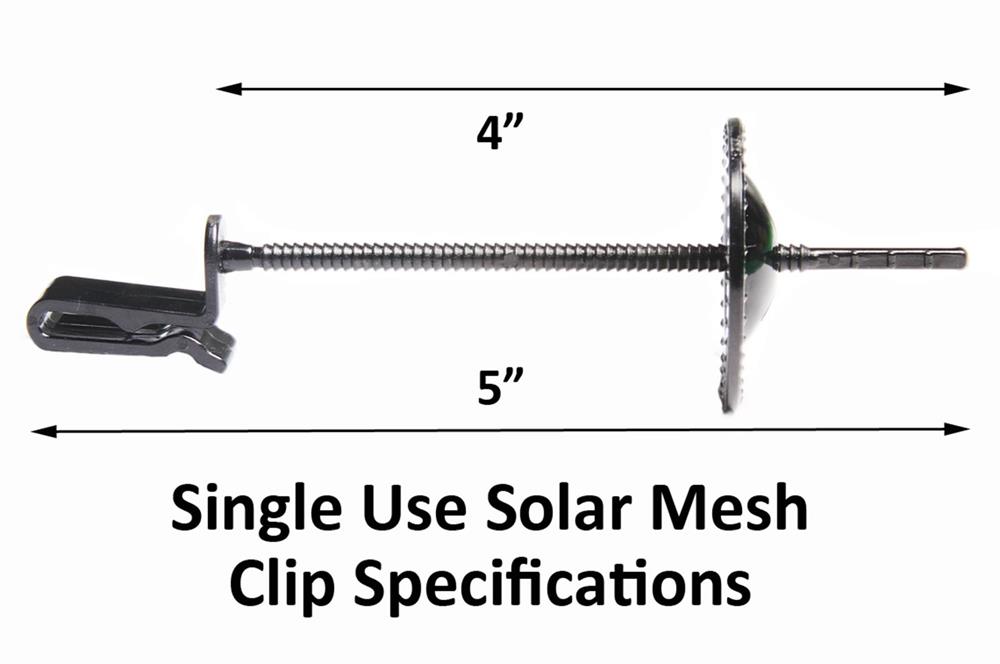

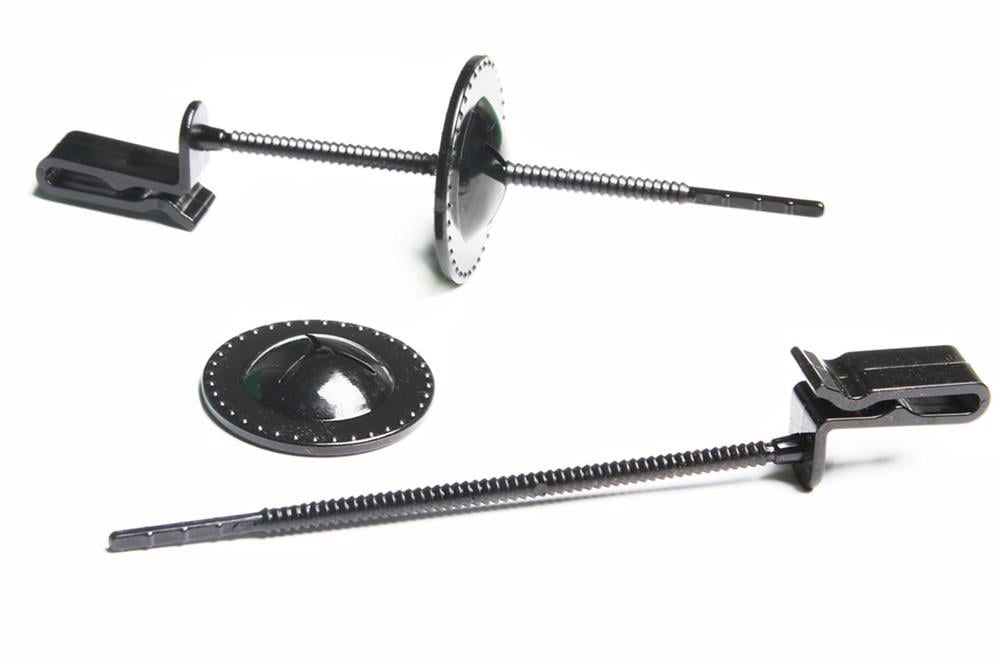

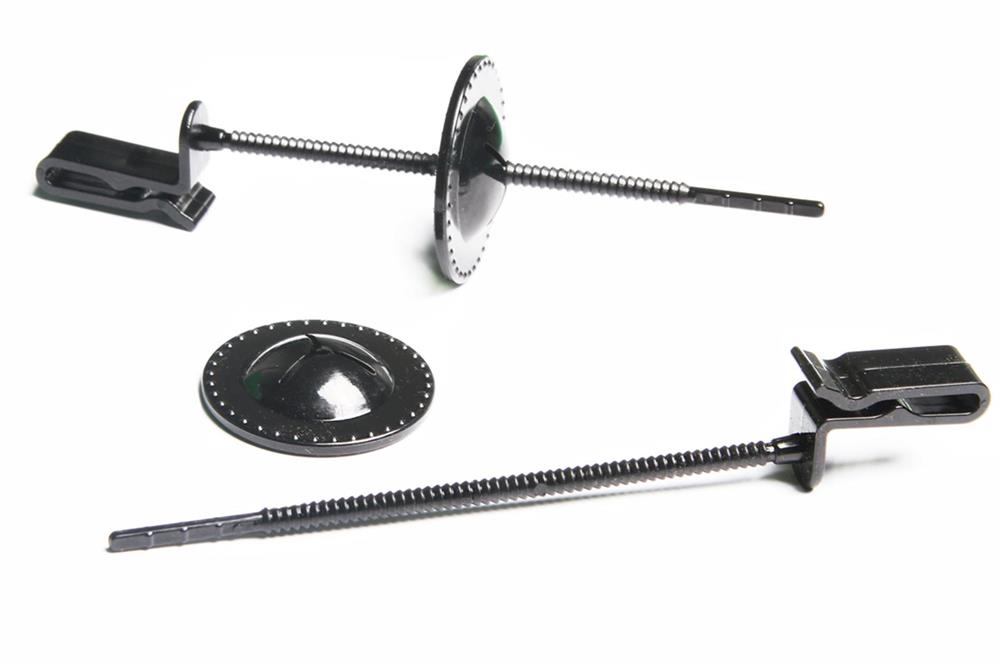

This specialized clip slips over the lip of the solar panel frame. Use a clip every 18" or less. This no drill solution provides long lasting and discreet exclusion. These are single-use clips and are not reusable.
Clips are made from black plastic poly material - not metal.
Sold in bags of 100
