PVC Termination Vent Screen Specifications
UPDATED SPEC SHEETS COMING

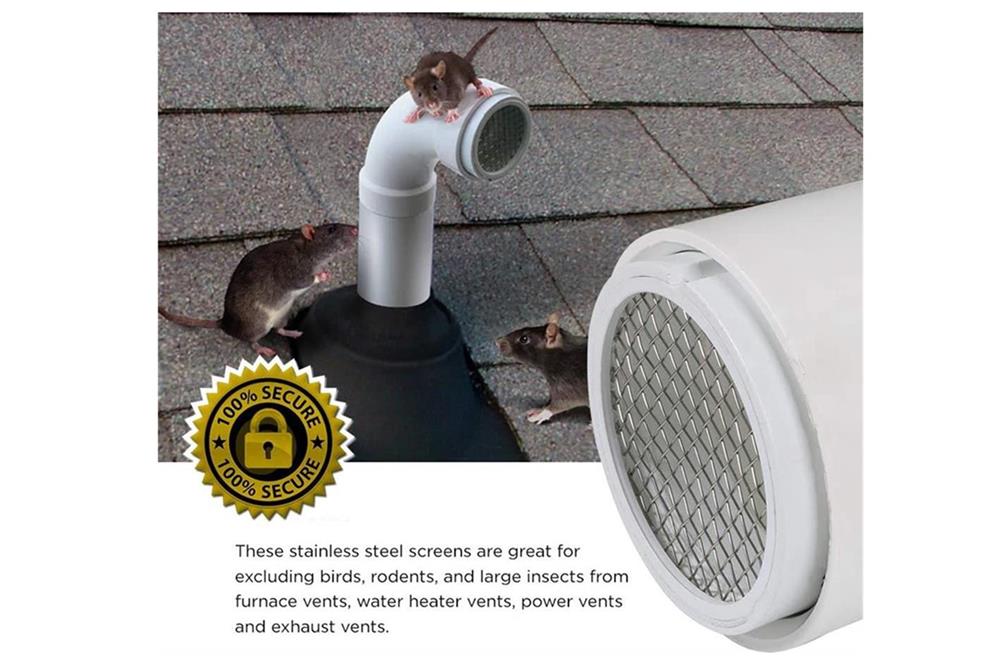

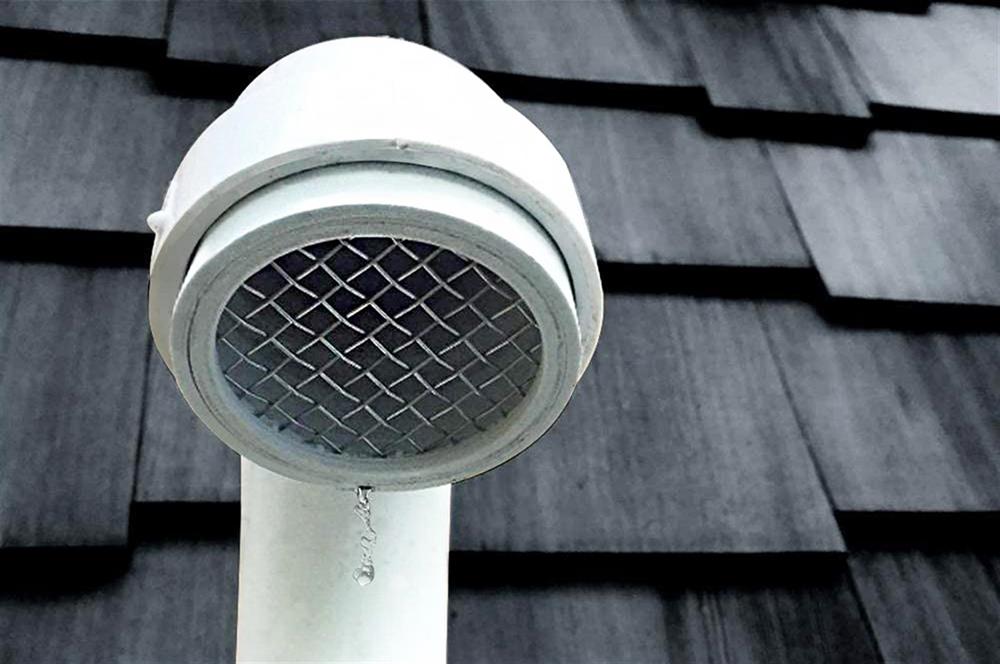

Prevent wildlife, leaves and debris from getting into your PVC exhaust vent pipes. Available in 2", 3", 4" and 6" sizes. Easily attaches to standard PVC pipe fitting or elbow flange (not included). Designed with a slotted side that allows for condensation to drain. These 3/16" mesh stainless steel screens are great for excluding birds, rodents, and large insects from furnace vents, water heater vents, power vents and exhaust vents.

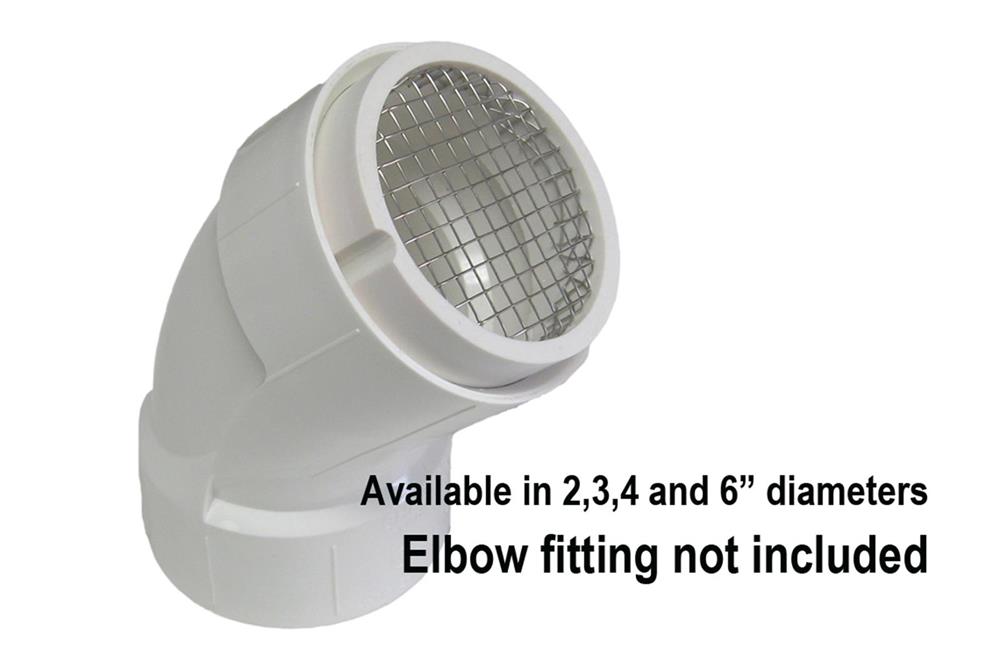

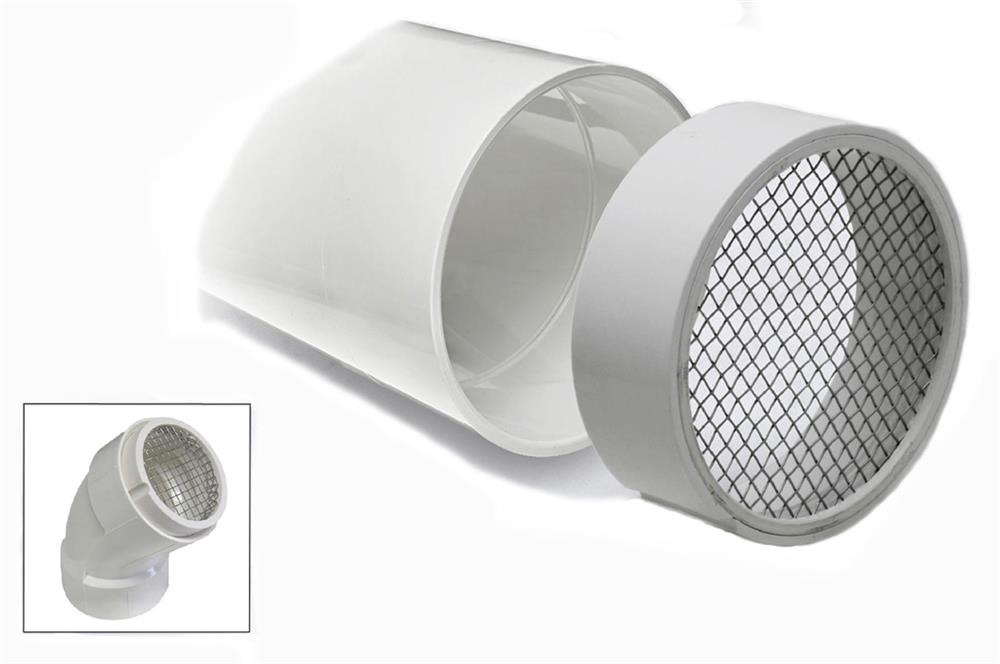

To join a Termination Vent Screen (TVS) to the same size and schedule PVC pipe, you will need a sleeve style PVC coupler. This joins pipes of the same size together where they meet at a joint. To join a TVS to a different diameter pipe (it must be schedule 40) you will need a schedule 40 Reducing Coupler. This joins pipes of different size diameters.
PVC schedule 40 adapters and couplers are not included. They can be purchased wherever PVC pipe and plumbing supplies are sold.
Made from HD Schedule 40 PVC material.

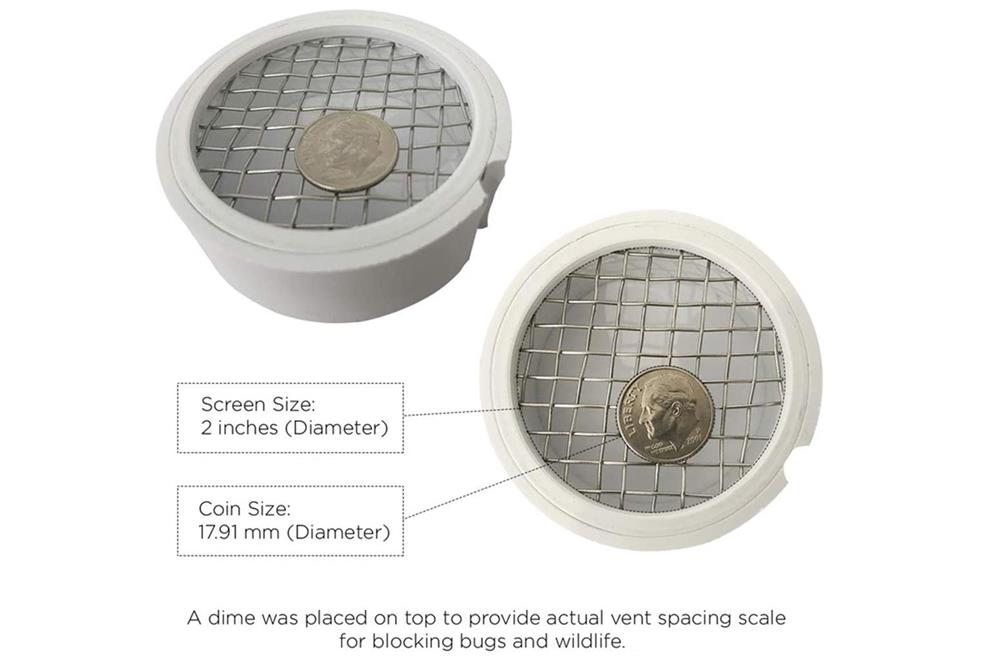

Screen is made of 3/16" square mesh Type 304 Stainless Steel.
Order for the size of the PVC pipe you want to protect.

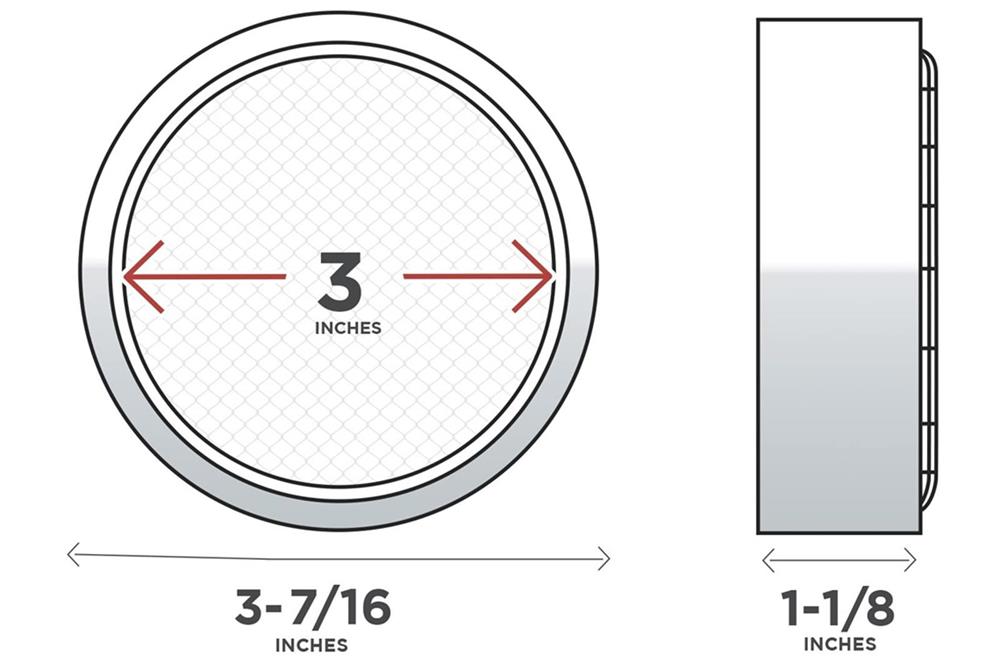

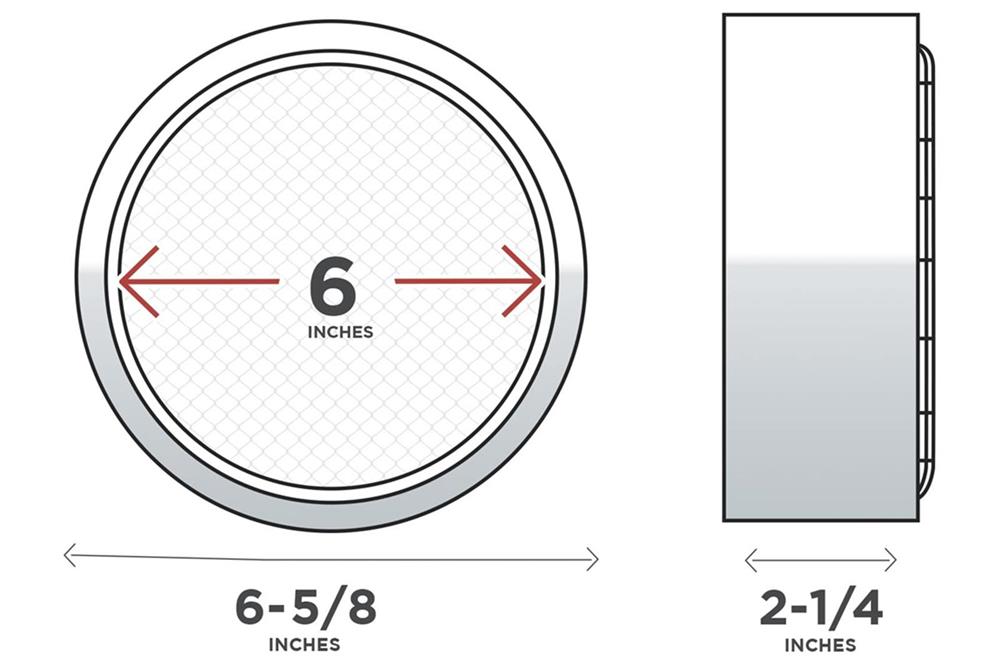

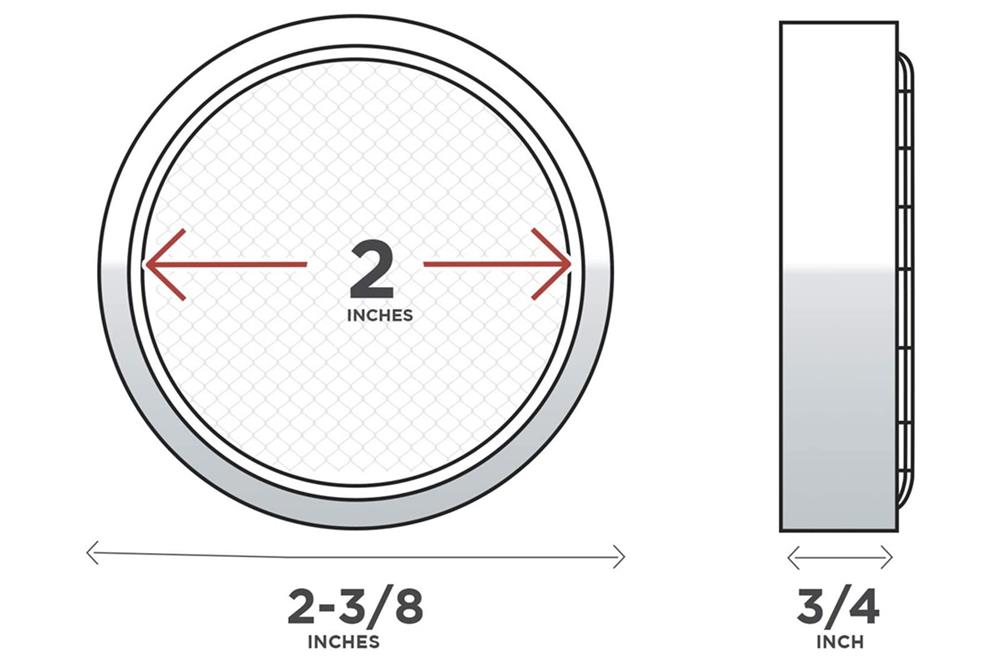

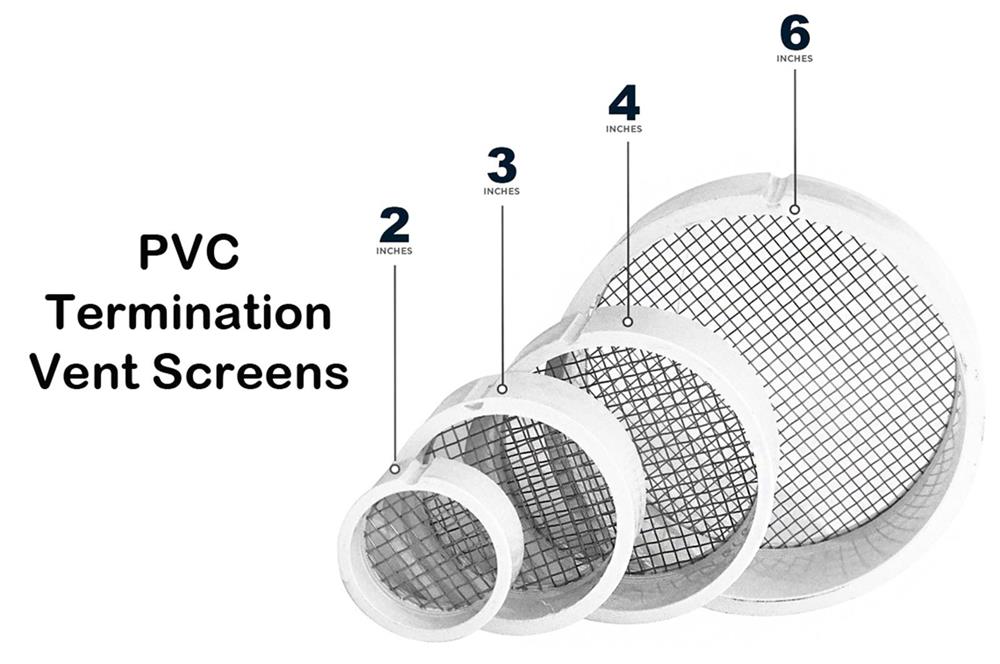

Available In: 2", 3", 4", & 6" sizes
