NightStar ULV/LVM
Click an image to see a larger picture.

NightStar ULV/LVM

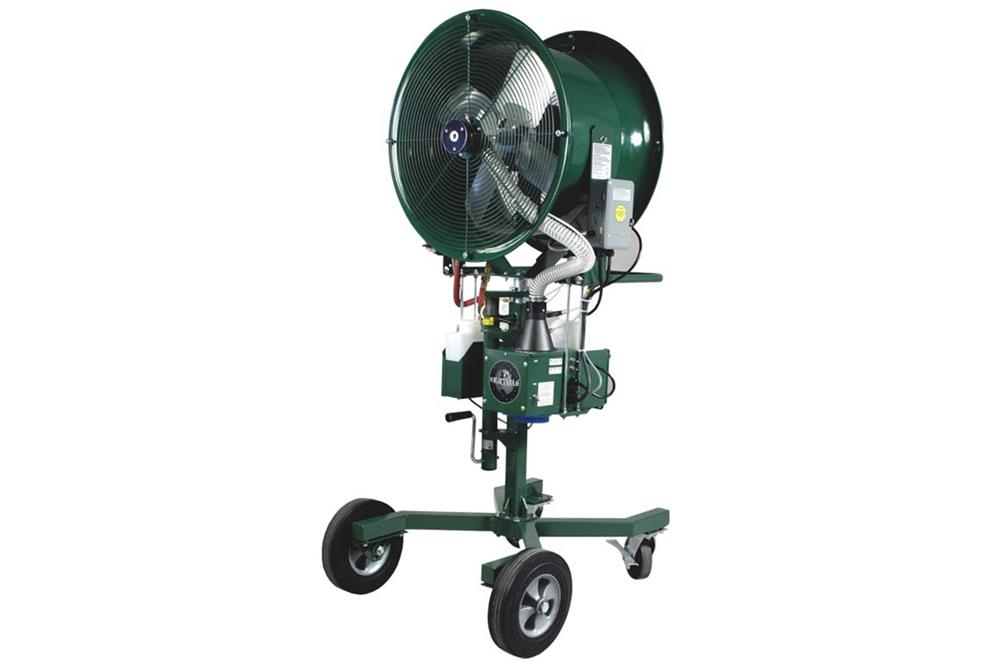

NightStar Electric Fogger, Sprayer & Mister

An advanced technology, high-output ULV/LVM generator for unattended, programmable fogging, misting and spraying applications. The Ultra Low Volume (ULV) and Low Volume Mister (LVM) design generates uniform droplets that are evenly distributed throughout the area being treated, making the NightStar one of the most precise foggers and misters available.

NightStar can efficiently treat areas up to 60,000 square feet without the use of auxiliary fans. With auxiliary fans, it can treat up to 90,000 square feet. By using patented formulation handling systems, the NightStar dispenses all liquid and wettable powder formulations with ease. The NightStar offers 4 different droplet size settings; 8, 20, 30 and 50 microns. Use the settings best suited for the application and formulation.

Please allow extra shipping time for your NightStar order.

NightStar ULV/LVM


Item #:
Price:
Sale Price:
What Makes the NightStar the Best:
  • Unattended programmable spraying of all types of formulations
  • The World's best enclosed environment sprayers, misters and foggers
  • Treats up to 60,000 square feet without auxiliary fans
  • Treats up to 90,000 square feet with added circulation fans
  • Programmable 8 event per day timers with user friendly digital displays
  • 4 selectable droplet size settings; 8, 20, 30 and 50 microns
  • Applies all types of formulations including wettable powders
  • Effortless auto flush system keeps system clean
  • Adjustable flow rate selections to meet specific needs
  • Comes with 4 wheeled base for stability
  • Self contained, mobile unit can be rolled into place quickly
NightStar Specifications:
Electrical Controls - water resistant, programmable (8 events per 24 hours)
Display - Digital, auto-memory
Fuse size - 115 volt- 25amp, 230 volt - 15amp
Current draw - 115vac -19 amps, 230vac - 9.5 amps
Fan - Axial type, water resistant, 1 HP
Air output -  8000 CFM (226 cubic meter per minute)
Diameter -  22 inch (56 cm) - RPM: 1725 (115V)
Fan adjustment - 70o horizontal, 45o vertical.
Noise level - 80 decibel max.
Flow rate -  0.5-4.1 GPH (1.9-15.5 LPH)
Spray nozzle - air atomizing type
Air Volume - 104 CFM (3 m3/min)
Spray droplet - selectable 8, 20, 30, 50 micron
Spray Reach: 300 feet (91 m)
Formulation tanks - Polyethylene HDPE
Capacity - 3 gallon (11.4 liter)
Agitation - Pneumatic and recirculatory
Flush tank - Polyethylene HDPE
Capacity - 0.5 gallon (1.9 l)
Dimensions
37.5”L  x 31.5”W  x 80.6” H (max)
Weight (empty):220 lbs. (100 kg)
Weight (full):252 lbs. (114 kg)
The easy to use, programmable schedule controller is housed inside a locking, water resistant enclosure. All the operator needs to do is add formulation to the chemical tank, water to flush tank, turn on the agitation switch (if using wettable powders), program the timer and vacate the premises. The correct sequences of air circulation, spraying, and flushing will then occur automatically.


NightStar Electric Fogger, Sprayer & Mister

An advanced technology, high-output ULV/LVM generator for unattended, programmable fogging, misting and spraying applications. The Ultra Low Volume (ULV) and Low Volume Mister (LVM) design generates uniform droplets that are evenly distributed throughout the area being treated, making the NightStar one of the most precise foggers and misters available.

NightStar can efficiently treat areas up to 60,000 square feet without the use of auxiliary fans. With auxiliary fans, it can treat up to 90,000 square feet. By using patented formulation handling systems, the NightStar dispenses all liquid and wettable powder formulations with ease. The NightStar offers 4 different droplet size settings; 8, 20, 30 and 50 microns. Use the settings best suited for the application and formulation.

Please allow extra shipping time for your NightStar order.

NightStar ULV/LVM
NightStar 1901 $ 7300.00 New
The NightStar 115VAC Mobile Mister and Sprayer applies all types of formulations in enclosed spaces. Automated and unattended spraying, misting and fogging of both liquid and wettable powder solutions. Treat 60,000 square feet unassisted and 90,000 square feet with auxiliary fans.
