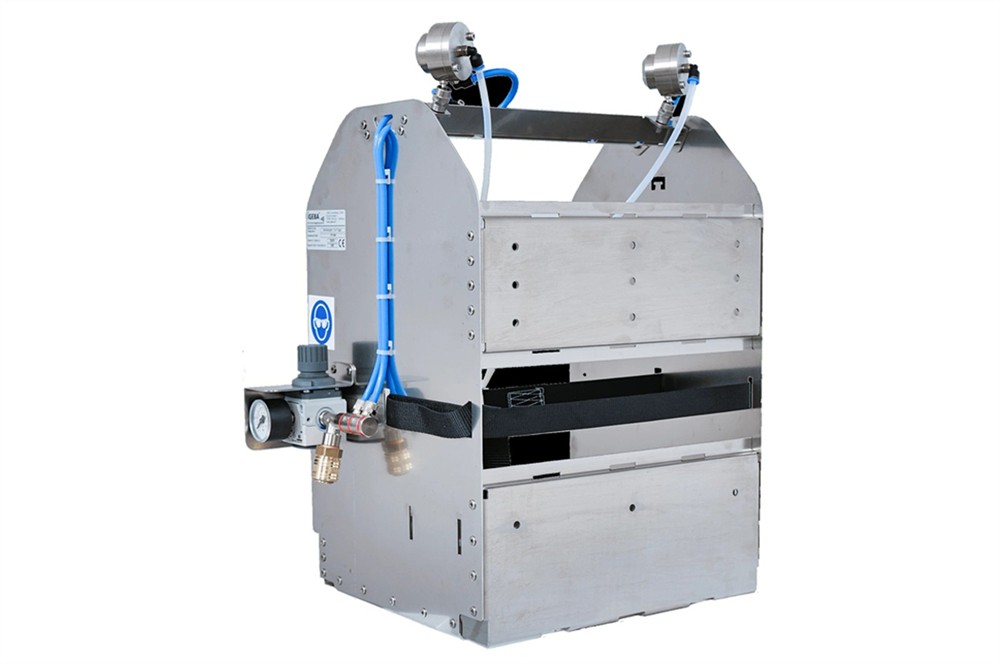

IGEBA CF 1-BM Fog Generator

IGEBA CF 1-BM is a compact and powerful fog generator that feeds the active ingredient directly from the customer‘s container. Only a compressed air supply is required for operation. The frame and the nozzles are made of high-quality stainless steel.

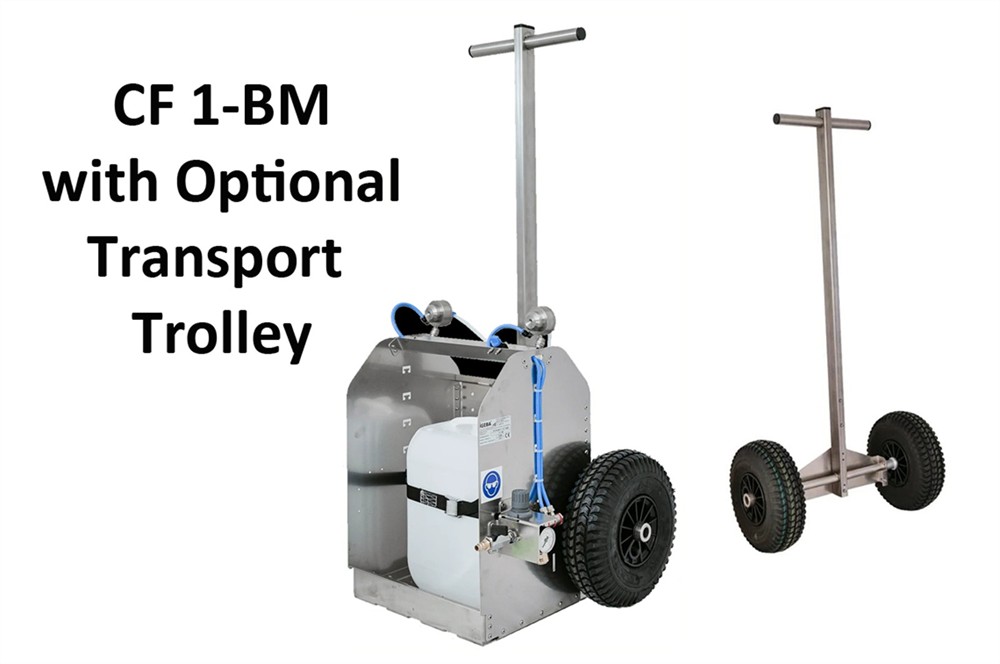

Thanks to its compact design, the CF1-BM is a highly versatile unit, which can either be mounted stationary on the wall, carried or driven mobile. It is ideally suited for the following fields of application: Pest control, horticulture, stock protection, disinfection & more.

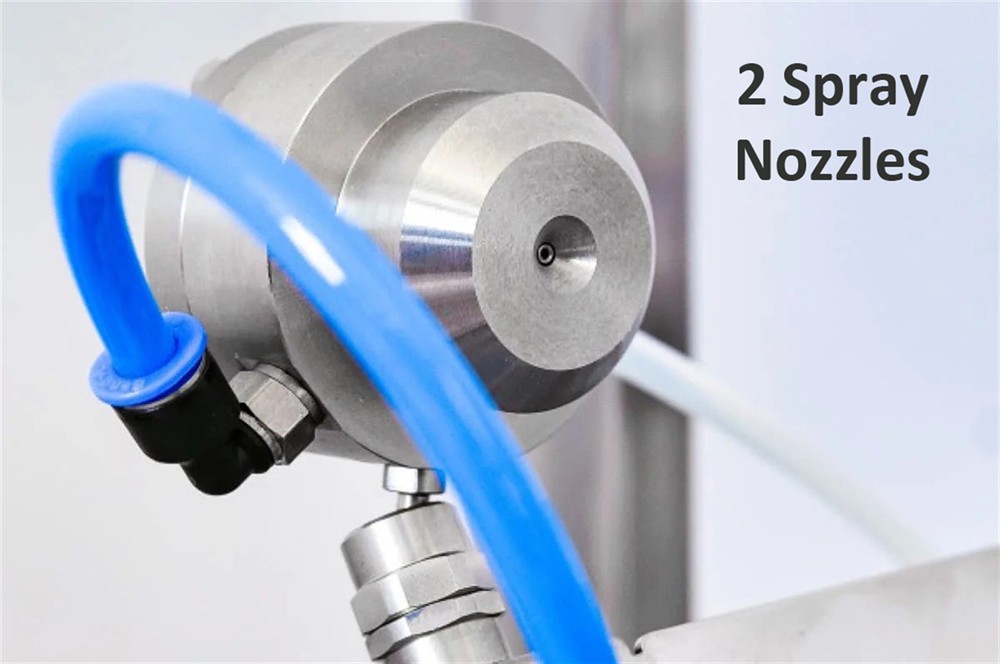

The CF 1-BM has two nozzles. If required the second nozzle can be switched off. Several units can easily be connected in series. It has an ON / OFF switch and can be extended with automatic control.

IGEBA CF 1-BM Features

Effective teatment of all rooms
Versatile Use
Simple operation
Requires no power supply

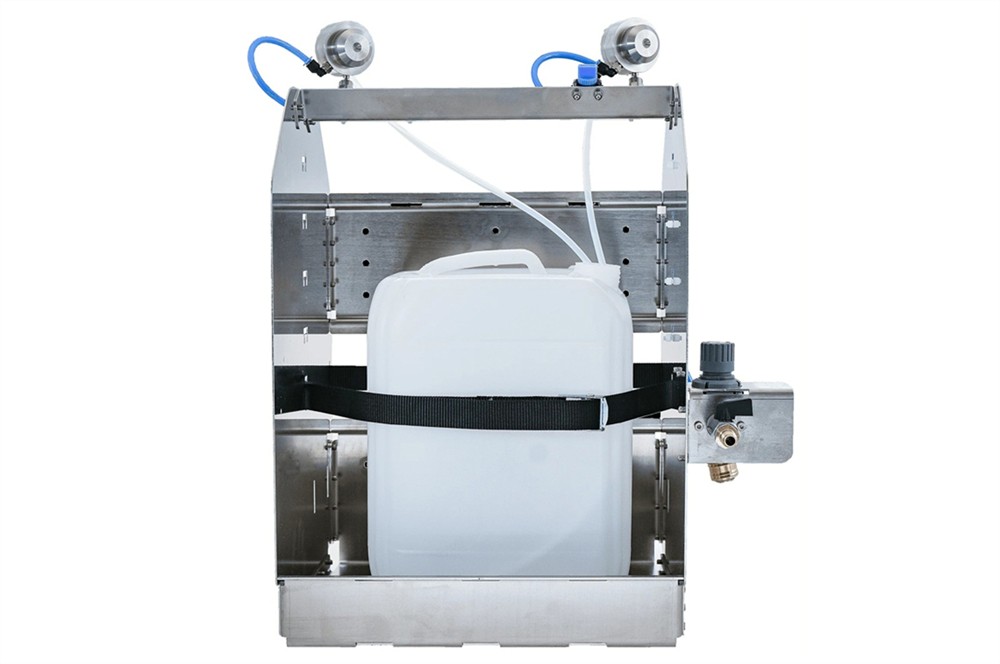

Feeds directly from any container
Low noise emission
Very fine & narrow drop spectrum

Please Contact Nixalite For Pricing & Delivery Info (888) 624-1189

CF 1-BM Uses
CF 1-BM Specifications
Downloads

Use The IGEBA CF 1-BM For:

Disease control through insect, bacterial and fungal control.
Disinfecting of large areas, surfaces and objects.
Disinfection or treatment of poultry and livestock containment.
Mold & mildew control in commercial and residential applications.
Hydrate greenhouses, plant nurseries, gardens, etc.
Storage building protection, disinfection.

CF 1-BM - U.S. Measurement Specifications

Specification	U.S. measurement
Dimensions (L × W × H)	16.1 × 13.0 × 20.5 inches
Weight	18.3 lb
Active substance container size	5.28 U.S. gallons
Dosage nozzle diameter (mounted)	1.1 mm (0.0433 in)
Dosage nozzle diameter (accessories)	0.6 mm (0.0236 in)
Water output at 3 bar, 1.1 mm nozzle	Up to 2.11 U.S. gal/hr
Droplet size — 0.6 mm nozzle, 4 bar	7 µm (0.276 mil)
Droplet size — 0.6 mm nozzle, 3 bar	9 µm (0.354 mil)
Droplet size — 0.6 mm nozzle, 2 bar	12 µm (0.472 mil)
Droplet size — 1.1 mm nozzle, 4 bar	12 µm (0.472 mil)
Droplet size — 1.1 mm nozzle, 3 bar	15 µm (0.591 mil)
Droplet size — 1.1 mm nozzle, 2 bar	19 µm (0.748 mil)
Air requirement at 3 bar per nozzle	2.83 CFM
Operating pressure	14.5–87 psi; typically 43.5 psi
Operating ambient temperature	14°F to 140°F
Noise emission at 3 bar, one spray nozzle	77 dB(A)

IGEBA CF 1-BM Brochure

Effective teatment of all rooms
Versatile Use
Simple operation
Requires no power supply
Feeds directly from any container
Low noise emission
Very fine & narrow drop spectrum
