HyperSpike® 18 Acoustic Hailing Device with Opti-Port HyperSpike® 18 Acoustic Hailing Device with Opti-Port An overview of HyperSpike Acoustic Dispersal
Click an image to see a larger picture.

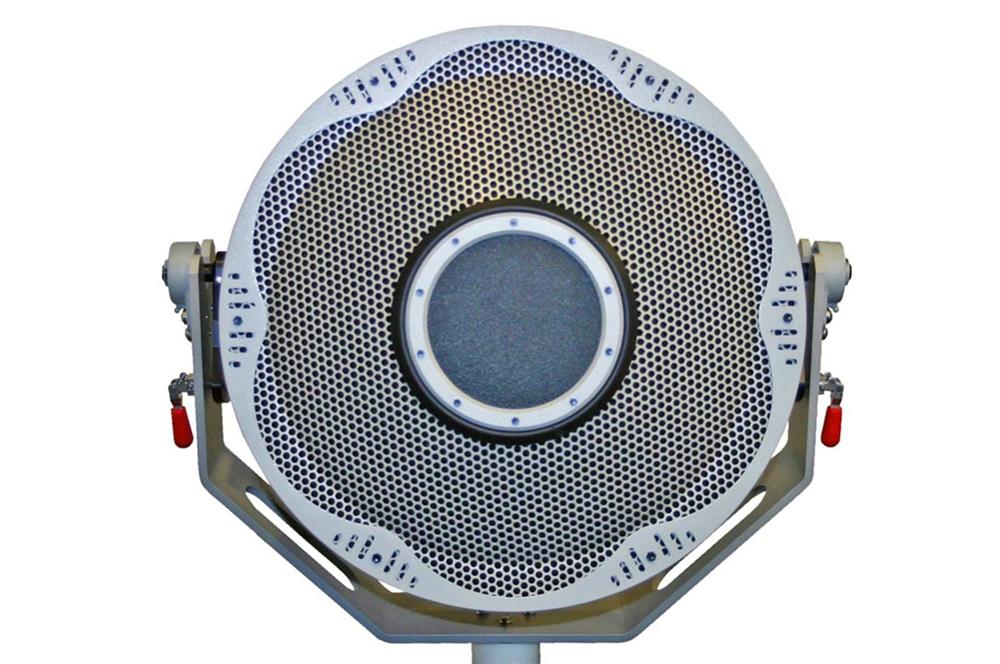

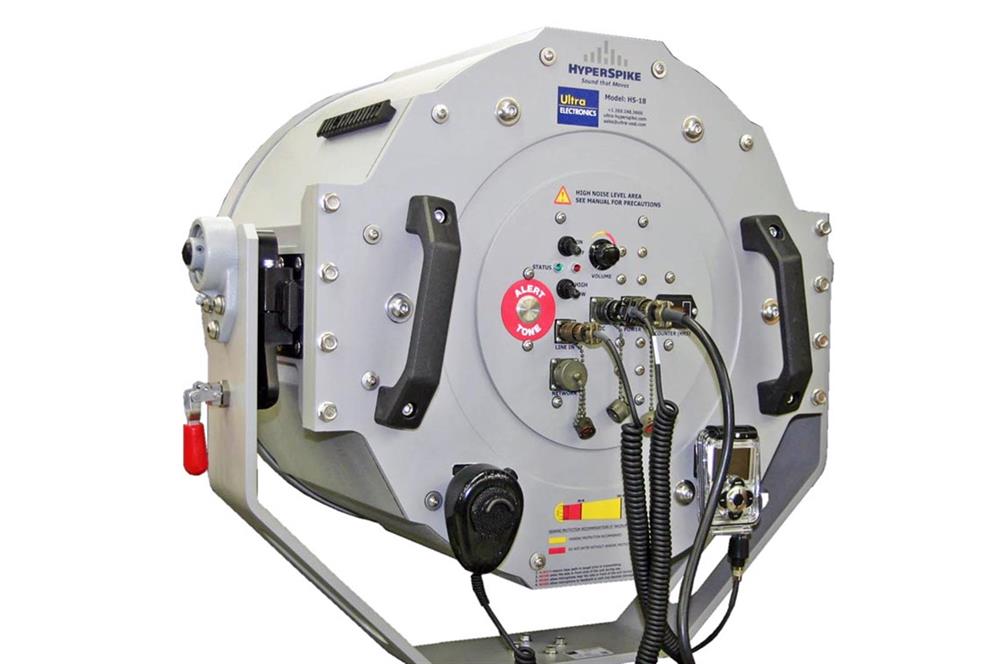

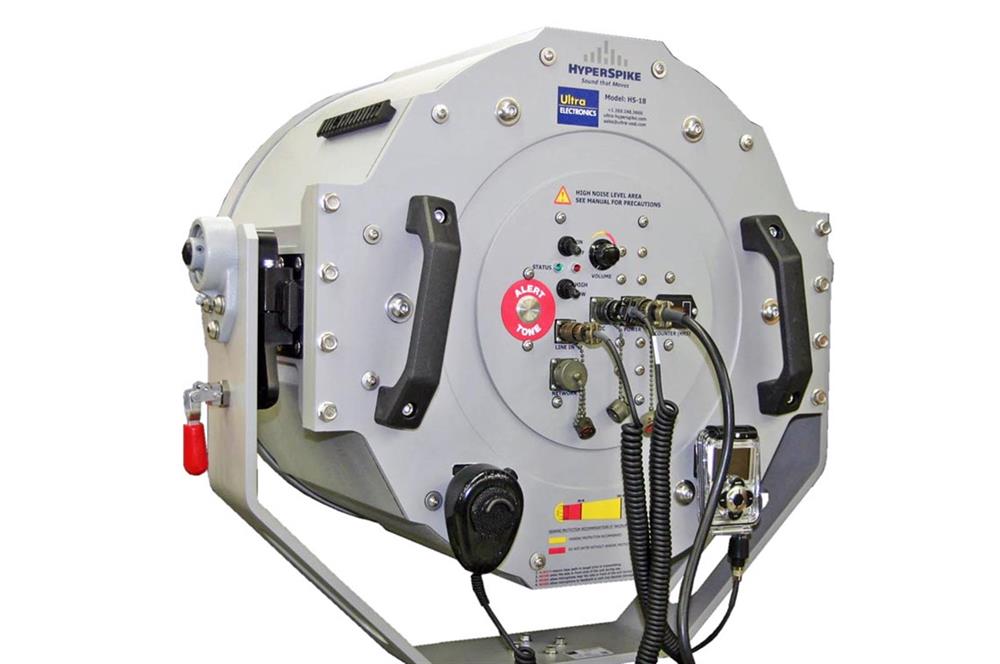

HyperSpike® 18 Acoustic Hailing Device with Opti-Port

The customizable model 18 provides a peak acoustic output of 156 dB for an effective communication range of 2,000 meters (2,187 yards, 6,562 feet).

Originally developed for the military and law enforcement, the HyperSpike 18 uses award winning HyperSpike sound generation technology. This focuses sound waves into a well defined 5 degree +/- sound beam that can be directed at individual targets, even if the target is over a mile away.

Designed to be flexible, the Opti-Port equipment bay allows for the addition of video cameras, search lights, laser dazzlers and other mission critical sensors to give operators enough time to evaluate the threat and respond with the appropriate measures. Equipped with Pan & Tilt and network integration capabilities, use HyperSpike 18 to transmit critical communications, security commands, selected wildlife distress calls, predator calls or alert tones that can be clearly understood out to over a mile.

Please Contact Nixalite For Prices & Delivery Time (888) 624-1189

Product Brochure

HyperSpike Accessories
Please Contact Nixalite For Pricing & Delivery Info (888) 624-1189
HyperSpike 18 Specifications:

Acoustic Performance
Sound Pressure Level Peak - 156 dB A-weighted @ 1 meter
Acoustic Beam Width -  +/- 5 deg. (10 deg. conical at 2 kHz /-3 dB)
Usable Range - Exceeds 2,000 meters (2,187 yards, 6,562 feet)
Frequency Response - 245 Hz - 10 kHz

Mechanical
Dimensions - 20" diameter x 18.3" deep (50.8 cm x 46.5 cm deep)
Dimensions Opti-Port - 5.75" diameter x 5.5" deep (14.6 cm x 14.0 cm)
Weight - 90 lbs (40.8 kg)
Housing Material - Carbon Fiber
Housing Color - Tan or Grey

Electrical Requirements
Power Input - 100-250 VAC 50/60 Hz
Current Draw (normal voice) - 2.4 Amps, 110 - 120V typical
Current Draw (alert tone) - 4.0 Amps, 110 - 120V typical
HyperSpike 18 Details
  • 156 dB peak acoustic output
  • Effective range of 2,000 meters (2,187 yards, 6,562 feet)
  • Penetrating high frequency alert tone built-in
  • Opti-Port equipment bay makes customizing easy
  • Wide frequency range of 245 Hz to 10 kHz
  • HD carbon fiber construction
  • Equipped with Pan & Tilt capabilities
  • Optional network ports for network integration
  • CB style microphone for voice over messages
Applications anywhere long range transmission of clear and concise acoustic information is needed.
  • Military Security
  • Ship & Cruise Line Security
  • Perimeter Protection
  • Law Enforcement, SWAT
  • Bird & Animal Dispersal
  • Oil & Gas Platforms
  • Search & Rescue Craft
  • Borders & Port Security
  • Keep people, animals and birds out of restricted areas
  • Long range instructions or hazard notification
HyperSpike 18 Packages
(item # HS 90096A-5131-02) - Desert Tan
(item # HS 90096A-5131-04) - Navy Gray
  • HyperSpike 18 Emitter Head
  • Saddle Bracket
  • HS Audio Optimizer Software
  • Record/Play Microphone
  • MP3 Player and Interconnect Cable
  • Hearing Protection
  • Accessory Bag
  • 10 ft AC Power Cord
  • Corrugated Foam Lined packaging
The customizable model 18 provides a peak acoustic output of 156 dB for an effective communication range of 2,000 meters (2,187 yards, 6,562 feet).

Originally developed for the military and law enforcement, the HyperSpike 18 uses award winning HyperSpike sound generation technology. This focuses sound waves into a well defined 5 degree +/- sound beam that can be directed at individual targets, even if the target is over a mile away.

Designed to be flexible, the Opti-Port equipment bay allows for the addition of video cameras, search lights, laser dazzlers and other mission critical sensors to give operators enough time to evaluate the threat and respond with the appropriate measures. Equipped with Pan & Tilt and network integration capabilities, use HyperSpike 18 to transmit critical communications, security commands, selected wildlife distress calls, predator calls or alert tones that can be clearly understood out to over a mile.
