HyperSpike® 14 Acoustic Hailing Device HyperSpike® 14 Acoustic Hailing Device An overview of HyperSpike Acoustic Dispersal
Click an image to see a larger picture.

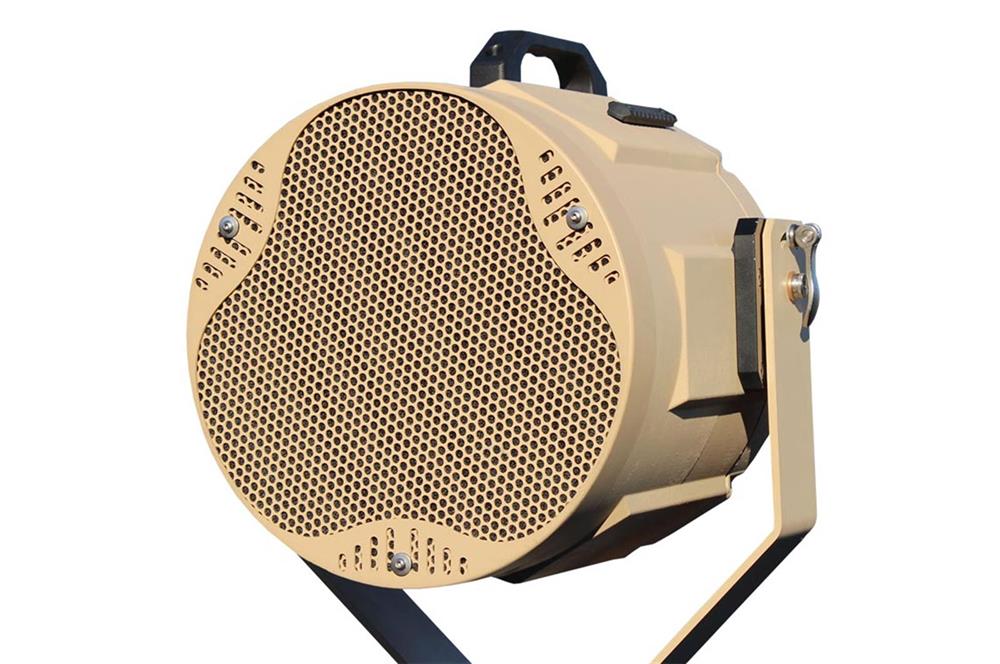

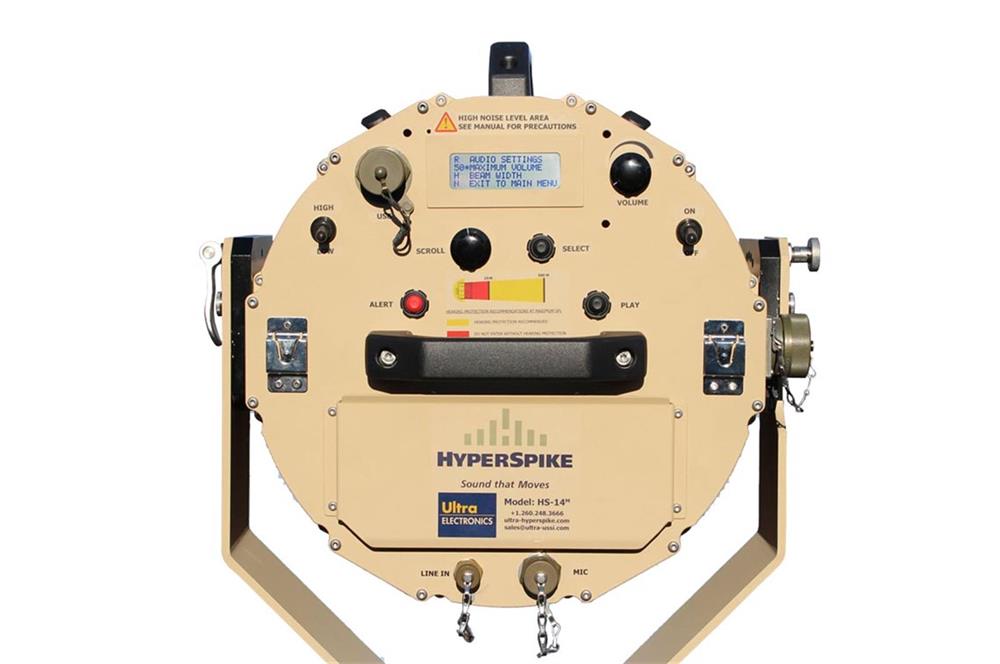

HyperSpike® 14 Acoustic Hailing Device

A self-contained, lightweight, portable and powerful acoustic hailing device. Weighing only 37 pounds, the HyperSpike 14 packs a peak acoustic output of 151 dB for a communication range of 1,500 meters (1,641 yards, 4,921 feet).

Originally designed and developed for the military and law enforcement applications, the HyperSpike 14 uses award winning HyperSpike sound generation technology. This focuses sound waves into a well defined 12 degree +/- sound beam that can be directed at individual targets, even if the target is over a half mile away. This focused beam is used to transmit critical communications, security commands, selected wildlife distress calls, predator calls or alert tones that can be clearly understood out to 1/2 of a mile.

Please Contact Nixalite For Prices & Delivery Time (888) 624-1189

Product Brochure
HyperSpike Accessories
Please Contact Nixalite For Pricing & Delivery Info (888) 624-1189
HyperSpike 14 Specifications:

Acoustic Performance
Sound Pressure Level Peak - 151 dB at 1 meter (LL Peak Max)
Acoustic Beam Width -  +/- 12 deg. (24 deg. conical at 2 kHz /-3 dB)
Usable Range - Up to 1,500 meters (1,641 yards, 4,921 feet)
Frequency Response - 300 Hz - 8 kHz

Mechanical
Dimensions - 14.5" diameter x 16.6" deep (36.8 cm x 42.2 cm deep)
Weight - 37 lbs (16.8 kg)
Housing Material - Carbon Fiber
Housing Color - Tan or Grey

Electrical Requirements
Power Input - 10-34 VDC
Power Consumption - 315 W voice
Power Consumption - 940 W peak with alert tone
HyperSpike 14 Details
  • 151 dB peak acoustic output
  • Effective range of 1,500 meters (1,641 yards, 4,921 feet)
  • Penetrating high frequency alert tone built-in
  • Lightweight at 37 lbs (16.7kg)
  • Wide frequency range of 300 Hz to 8 kHz
  • HD construction of carbon fiber and polycarbonate
  • Internal 16GB file player
  • Includes 10 ft power cord - military battery pack available as an accessory
  • Record and Play microphone for voice over messages
Applications anywhere long range transmission of clear and concise acoustic information is needed.
  • Crowd Control
  • Fire Services
  • Search & Rescue
  • Law Enforcement
  • Bird & Animal Dispersal
  • Emergency/Event Control
  • Borders & Port Security
  • Keep people, animals and birds out of restricted areas
  • Long range instructions or hazard notification
HyperSpike 14 Packages
(item # HS 90110A-1211-02) - Desert Tan
(item # HS 90110A-1211-04) - Navy Gray
  • HyperSpike 14 Unit
  • Saddle Bracket
  • Built-In File Player with 16GB Memory
  • Unterminated DC power cord
  • Record/Play Microphone
  • Hearing Protection
  • Accessory Bag
  • HS Audio Optimizer Software
  • Corrugated Foam Lined Packaging
A self-contained, lightweight, portable and powerful acoustic hailing device. Weighing only 37 pounds, the HyperSpike 14 packs a peak acoustic output of 151 dB for a communication range of 1,500 meters (1,641 yards, 4,921 feet).

Originally designed and developed for the military and law enforcement applications, the HyperSpike 14 uses award winning HyperSpike sound generation technology. This focuses sound waves into a well defined 12 degree +/- sound beam that can be directed at individual targets, even if the target is over a half mile away. This focused beam is used to transmit critical communications, security commands, selected wildlife distress calls, predator calls or alert tones that can be clearly understood out to 1/2 of a mile.

Please Contact Nixalite For Prices & Delivery Time (888) 624-1189

Product Brochure
HyperSpike Accessories
HyperSpike® 14 Acoustic Hailing Device A self-contained, lightweight, portable and powerful acoustic hailing device. Weighing only 37 pounds, the HyperSpike 14 packs a peak acoustic output of 151 dB for a communication range of 1,500 meters (1,641 yards, 4,921 feet).
