Effective Pest Bird & Wildlife Control Solutions Proud to be Family Owned and Operated Since 1950!

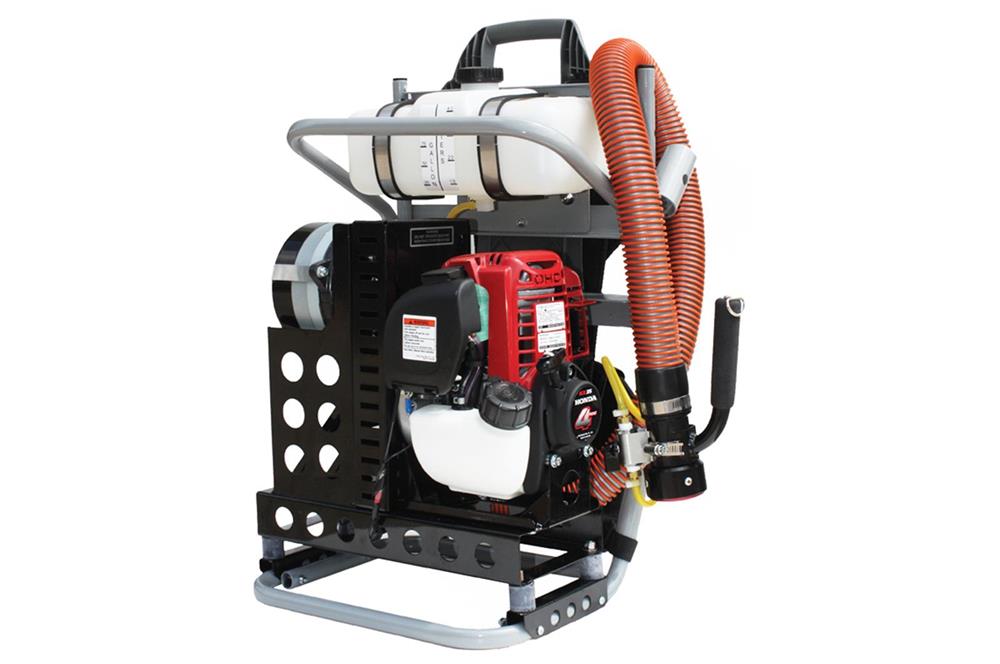

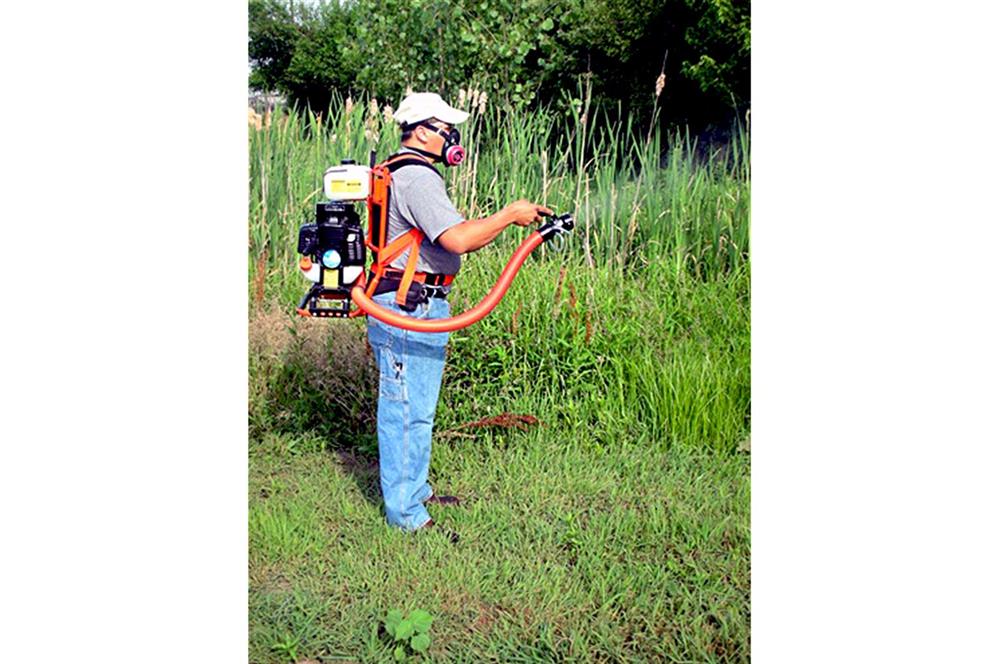

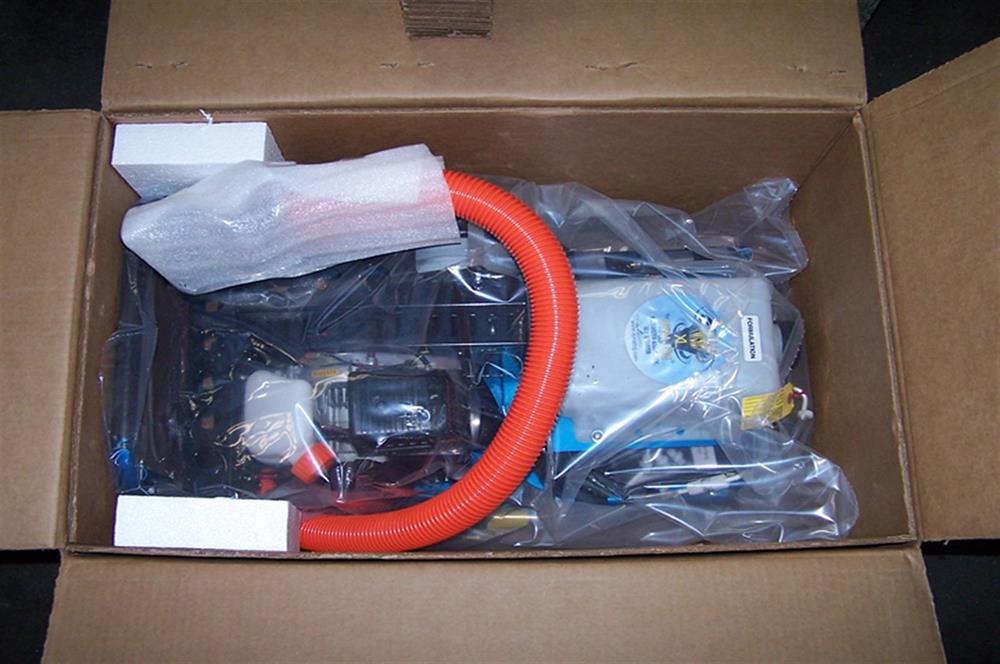

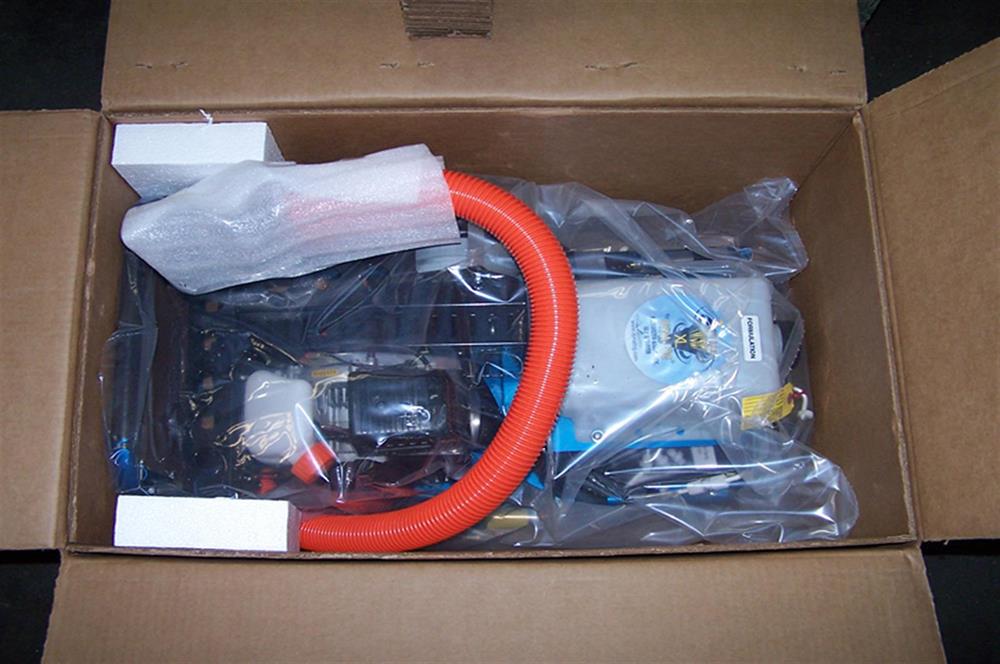

Curtis Dyna-Fog Twister Curtis Dyna-Fog Twister in box Curtis Dyna-Fog Twister in use
Click an image to see a larger picture.

Twister XL3 Motorized Backpack ULV Sprayer & Fogger

Curis DynaFog
Twister XL3 Gas Motor Powered Backpack ULV Fogger/Sprayer

The Twister XL3 is designed as a lightweight, compact aerosol generator that is ergonomically suited for long periods of use by the operator. It boasts the highest flow rates for true ULV sized droplets of any backpack sprayer on the market today. It features a remarkable and patented nozzle and blower system that outperforms all other sprayers of similar design.

Mount onto vehicles for efficient application on large areas. Fastens to golf carts, ATV racks, MUVs, pick ups and more. Order the optional twin nozzles for even more flow rate.
Made in the USA
NOTE: DO NOT USE STERI-FAB IN THIS FOGGER/SPRAYER


Twister XL3 Motorized Backpack ULV Sprayer & Fogger


Item #:
Price:
Sale Price:
Curis DynaFog
Twister XL3™ Details
  • Honda 4-stroke, high performance engine; emissions compliant, low fuel consumption, extra quiet. Operating speed 7500 rpm.
  • Single High Output Microtec Nozzle produces 95% of droplet below 20 micron size.
  • High Speed Rotary Type, 3-Stage Steel Shaft Blower with 95CFM positive displacement.
  • Heavy duty bright orange powder coated aluminum frame designed for optimal weight distribution.
  • High strength and chemical resistant nylon webbing with cushioned shoulder straps.
  • Heavy duty vibration isolators throughout the engine mounting framework.
  • Can be mounted to ATV racks, golf carts, MUV's, pickup trucks, etc.
  • Interchangeable nozzles to produce different flow rates for different solutions.
  • Corrosion resistant poly solution and fuel tanks.
  • 1 year manufacturers warranty
Curis DynaFog
Twister XL3™ Specifications
  • Model: 3950 Series 3
  • Type: Motorized backpack ULV aerosol generator, non-thermal sprayer
  • Engine: Honda 4-stroke, high performance engine; emissions compliant, low fuel consumption, extra quiet.
  • Operating speed: 7500 rpm.
  • Consumption: Uses up to 28 fl oz per hour of gasoline/oil 2-cycle mix
  • Blower: High speed rotary, 3 stage, belt driven 95 CFM positive displacement
    pressure at 3 psi (0.2 bar) maximum, 2 ball bearing supported steel shaft
  • Flow Control: Interchangeable orifice to product different flow rates from
    1.5 oz/min (45ml/min)  to 17 oz/min (500 ml/min) with twin nozzle option
  • Nozzle: Single high output Microtec nozzle. Optional dual nozzle for higher output
  • Droplet Size: 95% below 20 microns MMD at flow rates up to 6 oz/min (178 ml/min)
    Higher flow rates will provide larger droplets for residual output
  • Tanks: Corrosion resistant polyethylene.
    Formulation Tank: 1 US gallon
    Fuel Tank: 33 fl.oz (1 Liter)
  • Frame: High strength bright orange aluminum frame
  • Accessories: Curtis Viscometer, 2 cycle oil beaker, funnel, spare parts kit.
  • Options: Twin Nozzle Kit
  • Weight (dry): 36 lbs
Curis DynaFog
Twister XL3 Gas Motor Powered Backpack ULV Fogger/Sprayer

The Twister XL3 is designed as a lightweight, compact aerosol generator that is ergonomically suited for long periods of use by the operator. It boasts the highest flow rates for true ULV sized droplets of any backpack sprayer on the market today. It features a remarkable and patented nozzle and blower system that outperforms all other sprayers of similar design.

Mount onto vehicles for efficient application on large areas. Fastens to golf carts, ATV racks, MUVs, pick ups and more. Order the optional twin nozzles for even more flow rate.
Made in the USA
NOTE: DO NOT USE STERI-FAB IN THIS FOGGER/SPRAYER


Twister XL3 Motorized Backpack ULV Sprayer & Fogger
Twister XL3 $ 2750.00 Out of stock
Twister XL3 is a gas engine powered backpack ULV aerosol sprayer that is designed as a lightweight, compact unit ergonomically suited for long periods of use by the operator. It boasts the highest flow rates for true ULV sized droplets of any backpack sprayer on the market today.
