IGEBA TF-34 Thermal Fogger

	Item	Description	Price	Qty
	IGEBA RPK34	IGEBA TF-34 Replacement Parts Kit	$150.00
	IGEBA 83-07 700.00	IGEBA Special Dosage Nozzle for Fogging Repellents	$72.00
	IGEBA WCK34	TF-34 Water Converstion Kit	$120.00

IGEBA TF-34 Specifications

• Weight Empty (lbs/kg): 14.5 / 6,6
• Dimensions Inches: 30.7 x 10.6 x 13.3
• Dimensions Cm: 78 x 27 x 34
• Solution Tank Capacity: 1.5 G / 5,7 L
• Fuel Tank Capacity: 0.3 G / 1,2 L
• Fuel Consumption: 0.2 G hr / 1,1 L hr
• Max Flow Rate (Oil Base): 6.6 G hr / 25 L hr
• Horizontal Reach (indoor): 328 Ft / 100 M
• Ignition Batteries: 4 "D" batteries
• 13.6 Horsepower (10KW)

What's In The Box?

• Owners Manual
• 1 - Large Funnel
• 1 - Small Funnel
• 1 - 9" Solution Syphon
• 1 - AA Battery Adapter
• 1 - Shoulder Strap
• 1 - Tool Kit Including: Cleaning Brush, Combo Screwdriver, Carbon Tool, Wrench Set, Extra Dosage Nozzle and Small Diaphragm & Gasket Kit

IGEBA TF-34 National Stock Number NSN 3740-12-375-2077

Use The TF-34 For:

• Applying EcoBird Repellent requires optional control valve.

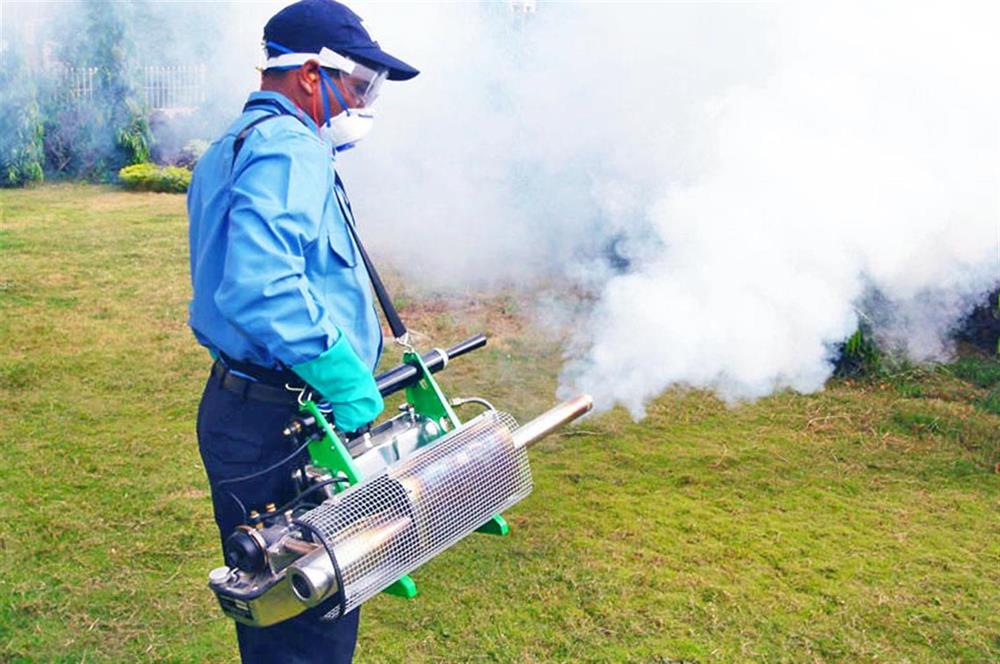

• Mosquito, gnat, fly and other flying insect control.
• Disease control through insect, bacterial and fungal control.
• Mold & mildew control in commercial and residential applications.
• Hydrate greenhouses, plant nurseries, gardens, etc.
• Fogging for stored products and potato sprout control.
• Special effects applications for fog and smoke.
• Fog oil base formulation in nearly any large structure.
• Apply water based solutions with optional "W" tube.

Using EcoBird in your TF-34:

If using EcoBird repellent in your TF-34 see the additional options tab.
IGEBA has designed Custom Flow Valves just for the application of EcoBird repellent.

Additional TF-34 Options:

Special Dosage Nozzle made just for the application of EcoBird Bird Repellent. Select Item # IGEBA NOZ.

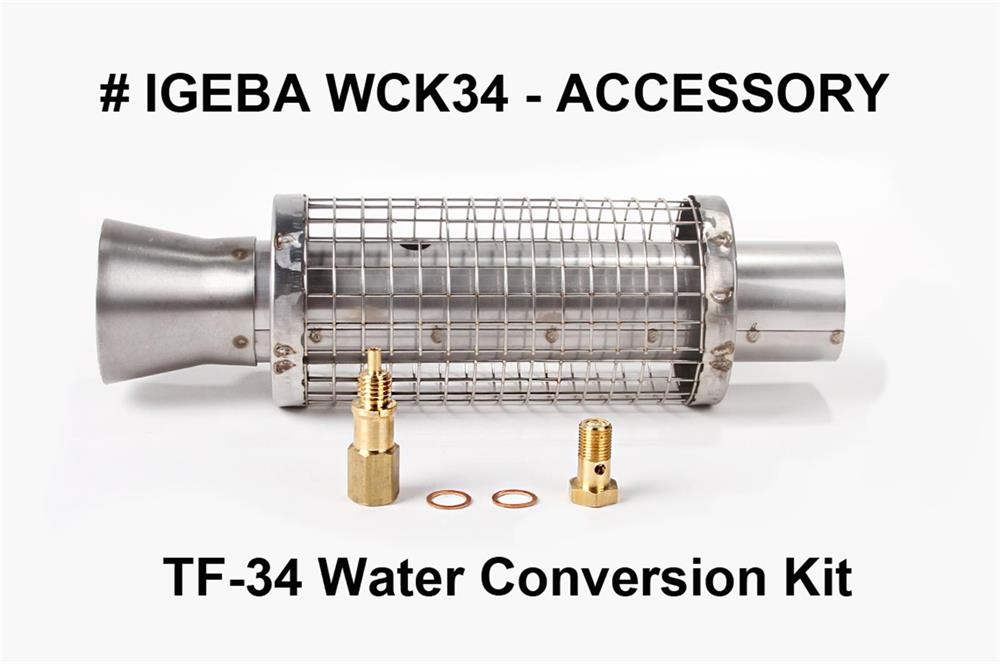

Additional Water Conversion Kit allows the use of water based formulations. Select Item # IGEBA WCK34.

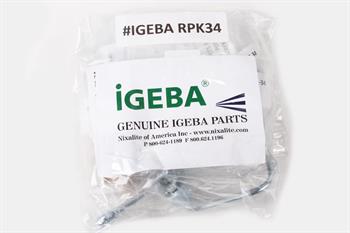

IGEBA RPK34: Replacement parts pack has all of the consumable parts you need to maintain your fogger.

IGEBA TF-34 Documents

TF-34 Brochure
TF-34 Owners Manual
TF-34 Parts List


iGEBA TF-34 "How To" Series
       Protecting your investment

Startup, Tuning & Running the IGEBA TF-34
Installing the TF-34 Water Conversion Kit
Clean or Replace the IGEBA TF-34 Diapgram

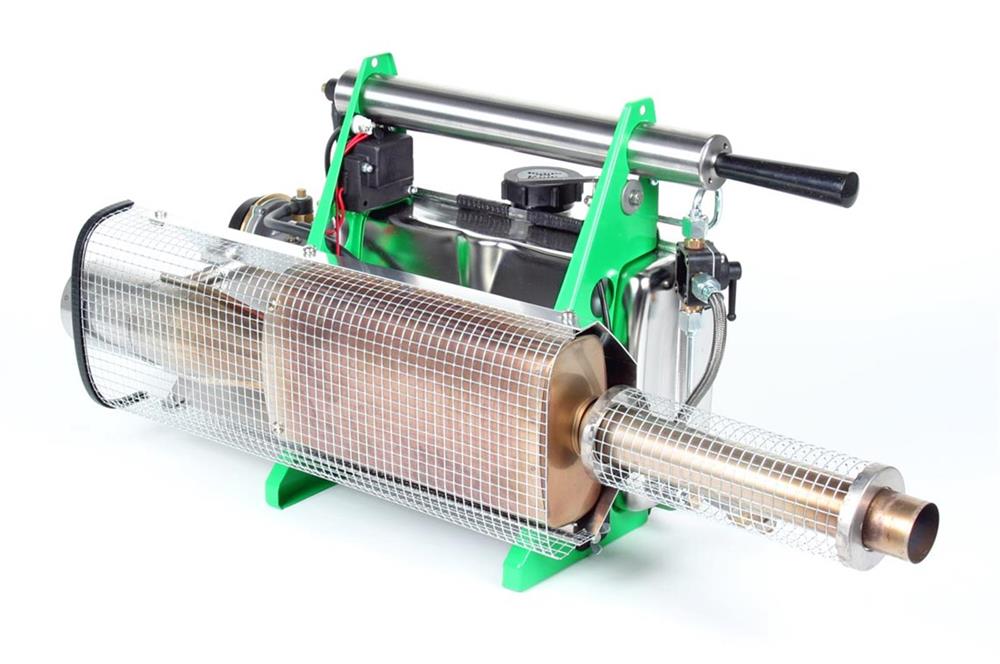

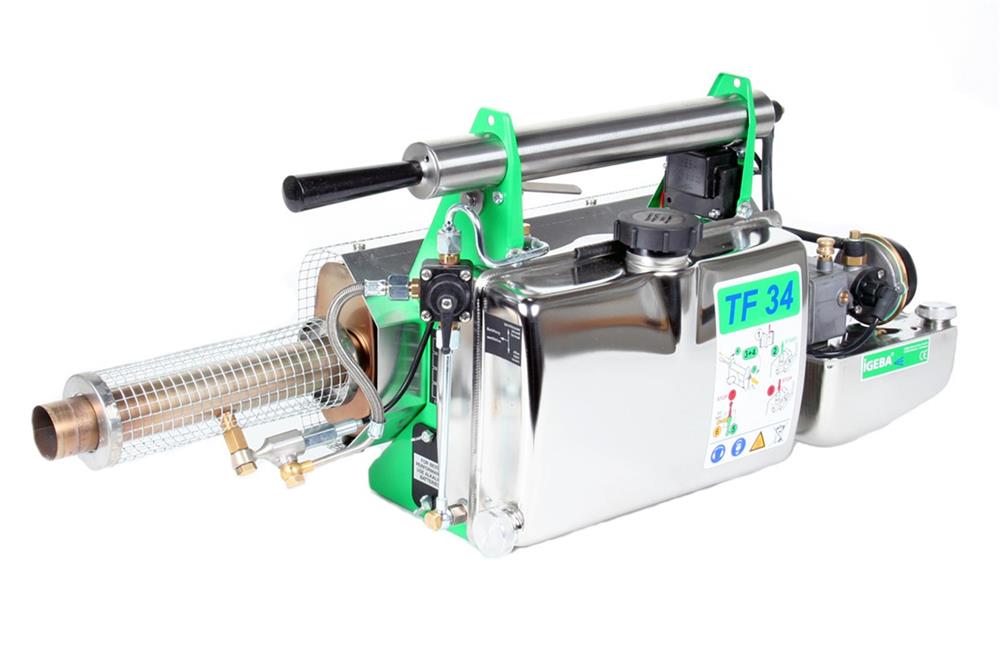

IGEBA^® TF-34 Pulse Jet Thermal Fog Generator
A compact thermal fogger designed for indoor and outdoor fogging applications including mosquito control, disinfection, stored products, vector and odor control.

National Stock Number (NSN): 3740-12-375-2077
Federal Supply Class: 3740
National Item Identification Number: 123752077

THE IGEBA TF-34 is Our Best Compact Thermal Fogger!

IGEBA TF-34 Standard Features

• Stainless steel fuel tank and formulation tank.
• 4140 stainless steel expansion chamber & tube.
• All other parts contacting solution are made of brass or Teflon.
• Easiest starting pulse-jet fogger! Has stainless steel air pump assist.
• Lightweight unit; weighs only 14.5 lbs/ 6,6 kg empty.
• Optional precision valve made just for the application of EcoBird Bird Repellent
• Global ISO 9001 Certificate awarded to all IGEBA foggers.
• Absolutely reliable ignition uses 4 "D" cell batteries - no spark plugs.
• Convenient stainless steel drain at the bottom of solution tank.
• Comes with: operators manual (book and CD), maintenance kit, extra dosage nozzles, and more.
• Lowest NO2 and CO exhaust emissions of any thermal fogger available.

NOTE: DO NOT USE STERI-FAB IN THIS FOGGER.

Nixalite of America is the only authorized distributor and service center for IGEBA Thermal and ULV Fogging Equipment serving the United States and Canada.

Authorized sales only to the USA, Canada, Carribean & Puerto Rico.
All other countries contact IGEBA directly.
