IGEBA®

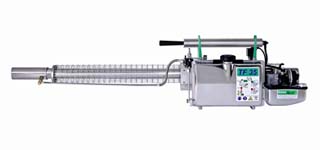

TF-35 Thermal Fogger
The TF-35 is a lightweight thermal fogger
used indoors or outdoors to create large volumes of fog with
very small particle sizes. The TF-35 applies oil based
formulations with the standard fog tube. With the optional
"W" fog tube, the TF-35 can apply water based formulations.
Using Fog
Force in your TF-35:
If using Fog Force Bird Repellent
in your TF-35 go to the Options section below.
IGEBA has designed Custom Flow Valves just for the application of
Fog Force.
Order Your IGEBA TF-35
Now
Download IGEBA TF-35 Product Brochure Now (PDF)
IGEBA TF-35 Specifications
Additional TF-35 Models & Options
IGEBA® - The
Global Standard for Excellence and Quality in Thermal Fogging
IGEBA TF-35 Features
- Stainless steel fuel tank and formulation tank.
- 4140 stainless steel expansion chamber
& tube.
- All other parts contacting solution are made
of brass or Teflon.
- Easiest starting pulse-jet fogger! Has stainless steel air pump assist.
- Lightweight unit; weighs only 17.5 lbs/
7,9 kg empty.
- Optional "W" Fog Tube makes it water
based solution compatible.
- Optional precision valve made just for
the application of Fog Force Bird Repellent
- Global ISO 9001 Certificate awarded to
all IGEBA foggers.
- Absolutely reliable ignition uses 4
"D" cell batteries - no spark plugs.
- Convenient stainless steel drain at the
bottom of solution tank.
- Comes with: operators manual (book and
CD), maintenance kit, 3 dosage nozzles, and more.
Additional TF-35 Options
Special Dosage Nozzle made just for the application of Fog
Force Bird Repellent. Select Item # IGEBA NOZ.
Additional "W" Fog Tube allows the use of water based
formulations. Select Item # IGEBA WT
Order Your IGEBA TF-35
Here
IGEBA TF-35 Specifications
- Weight Empty (lbs/kg): 17.5 / 7,5
- Dimensions Inches:
54.3 x 10.6 x 13.3
- Dimensions Cm: 137,5 x 27 x 34
- Solution Tank Capacity: 1.5 G /
5,7 L
- Fuel Tank Capacity: 0.3 G / 1,2 L
- Fuel Requirements: Unleaded
Gasoline
- Fuel Consumption: 0.5 G hr / 2
L hr
- Max Flow Rate (Oil Base): 11 G hr /
42 L hr
- Max Horizontal Reach (oil base):
300+ ft
/ 90+ m
- Max Horizontal Reach (water): 130
ft / 40 m
- Ignition Batteries: 4 "D"
batteries.
Use The TF-35 For:
- Applying Fog Force Repellent; requires
optional control valve.
- Mosquito, gnat, fly and other flying insect
control.
- Disease control through insect, bacterial and
fungal control.
- Disinfecting of large areas, surfaces and objects.
- Disinfection or treatment of poultry and
livestock
containment.
- Mold & mildew control in commercial and
residential applications.
- Hydrate greenhouses, plant nurseries,
gardens, etc
- Special effects for the film & entertainment
industry.
- Training tool for military or law
enforcement.
- Applies oil base solutions with standard fog
tube (included).
- Applies water based solutions with optional "W"
tube.
NOTE: DO NOT USE
STERI-FAB IN THIS FOGGER. Download a
IGEBA TF-35 brochure.
(PDF)
